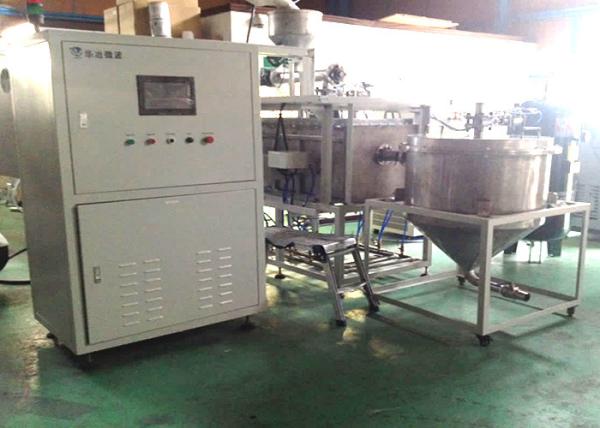

HY-PH12010 Graphene Exfoliation Furnace 1300 Degree Thermocouple 300mm Diameter Tube
HY-PH12010 Graphene Exfoliation Furnace 1300 Degree Thermocouple 300mm Diameter Tube
HY-PH12010 Graphene Exfoliation Furnace 1300 Degree Thermocouple 300mm Diameter Tube
HY-PH12010 Graphene Exfoliation Furnace 1300 Degree Thermocouple 300mm Diameter Tube
Specifications
Brand Name :
Huaemw
Model Number :
HY-PH12010
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Name :
Graphite Oxide Exfoliation Furnace
Heating Source :
Microwave
Working Temperature :
0~950°C
Microwave Leakage Prevention :
<2mW/cm2
Temperature Measurement Method :
thermocouple
Warranty :
1 year
Description

HY-PH12010 Graphene Exfoliation Furnace 1300 Degree Thermocouple 300mm Diameter Tube

  • Product Features

The Graphite Oxide Exfoliation Furnace HY-PH12010 is high-power microwave furnace for graphene mass produciton.

The exfoliation process can be finished in a few seconds since the heating speed of the furnace can reach up to 500°C/s, which enables instantaneous exfoliation of graphite oxide and efficient production of high-quality graphene.

Furnace body is welded by 304 stainless steel to prevent microwave from leakage considerably, while the innovative tube and insulation structure ensure that there is neither product pollution nor accumulation.

  • Applications

HY-PH12010 can be applied to mass production of graphene or nano-graphite oxide, the production capacity can reach up to 10~55kg per day.

  • Technical Parameters
Parameters HY-PH12010
Power Voltage 380V±10V, 50Hz, three phase
Rated Power 25KW
Microwave
System		 Microwave Output Power 0.10~11.20KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity
<2mW/cm2
Thermal Insulation System Tmax 1000°C
Working Temperature 0~950°C
Heating Space(D×H) Φ300×800mm
Temperature Control System Temperature Measurement Method thermocouple
Temperature Measurement Range 0~1300°C
Temperature Control Precision ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Feeding Mode automaticly
Safety System Magnetron Alarm over temperature alarm
Overall
Dimension		 Furnace Body(L×W×H) ca. 3000×1900×1900mm
Rack(L×W×H) ca. 800×800×2000mm
