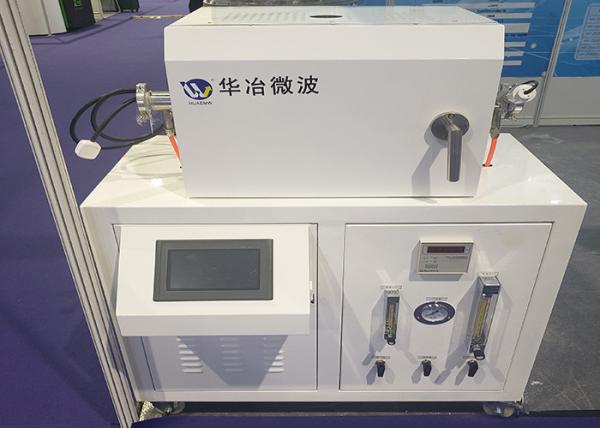

Microwave Sliding Tube Furnace HY-ZGS3012 With Sliding Length Up To 1200mm
Microwave Sliding Tube Furnace HY-ZGS3012 With Sliding Length Up To 1200mm
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZGS3012
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave
Working Temperature :
0~1150℃
Sliding Length :
1200mm
Usage :
Fast Heating and Cooling
Temperature Control Precision :
±0.1%
warranty :
1 year
Description

Microwave Sliding Tube Furnace HY-ZGS3012 With Sliding Length Up To 1200mm

  • Product Features

HY-ZGS3012 is a auto sliding microwave tube furnace with a Φ60×130mm quartz working tube that can work continuously under 1150°C.

Fast heating and cooling can be achieved by sliding the furnace chamber from side to side, for fast heating, firstly preheat the furnace chamber to a desired temperature and then slide the furnace chamber to the sample's position, while for fast cooling, slide the furnace chamber to another side.

HY-ZGS3012 provides various atmosphere conditions such as vacuum, air, inert gas as well as weak reducing gas (mixed atmosphere).

The temperature and sliding control features is as follows,

40 segments of programmable technical parameters for precisely control

built-in over-temperature and over-current alarm for operation safety

built-in type S thermalcouple to achieve a ±0.1% temperature control precision

sliding length: 1200mm

  • Applications

HY-ZGS3012 can be applied to a range of applications that require processing flexibility with fast heating and cooling rates.

  • Technical Parameters
Parameters HY-ZGS3012
Power Voltage 380V±10V 50Hz
Rated Power 3KW
Microwave
System		 Microwave Output Power 0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Heating Space
(diameter×width)		 Φ60×130mm
Temperature Control
System		 Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0°C~1300°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Atmosphere System Static Ultimate
Vacuum Degree		 ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension		 Furnace Body(L×W×H) ca. 530×1000×1200mm
Rack(L×W×H) ca. 900×1200×1500mm
