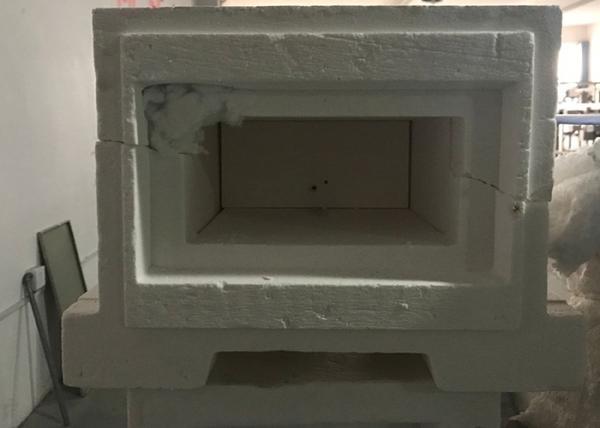

1200°C Microwave Ashing Furnace For Coal Quality Analysis Laboratory Drying Oven
1200°C Microwave Ashing Furnace For Coal Quality Analysis Laboratory Drying Oven
1200°C Microwave Ashing Furnace For Coal Quality Analysis Laboratory Drying Oven
1200°C Microwave Ashing Furnace For Coal Quality Analysis Laboratory Drying Oven
Specifications
Brand Name :
Huaemw
Model Number :
HY-MF3012
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
name :
Microwave Ashing Furnace
Heating Source :
Microwave
Working Temperature :
0~1150℃
Microwave Leakage Prevention :
<2mW/cm2
Temperature Measurement Method :
thermocouple
warranty :
1 year
Description

1200°C Microwave Ashing Furnace HY-MF3012 For Coal Quality Analysis

  • Product Features

The Microwave Ashing Furnace HY-MF3012 is specially designed for processes of larger sample incinerating with a heating space of 200×200×100mm.

HY-MF3012 is produced using high-quality materials and can be operated easily, which makes it perfect choice for processes in research and the laboratory.

HY-MF3012 is energy efficient and can save up to 97% of process time compared to conventional electirc heating ashing furnaces.

  • Applicaitons

HY-MF3012 can be applied to process of ashing, sulfonating, melting, drying, thermal treatment of various organic and inorganic materials as well as testing the residue on ignition(ROI), loss on ignition(LOI) etc. can be applied is especially suitable for drug testing and pretreatment of medical samples..

  • Technical Parameters
Parameters HY-MF3012
Power Voltage 380V±10V 50Hz
Rated Power 5KW
Microwave
System		 Microwave
Output Power		 0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Heating Space(L×W×H) 200×200×100mm
Temperature Control
System		 Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0~1300°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Safety
system		 Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension		 Furnace Body(L×W×H) ca. 850×650×750mm
Floor Area <1m2
