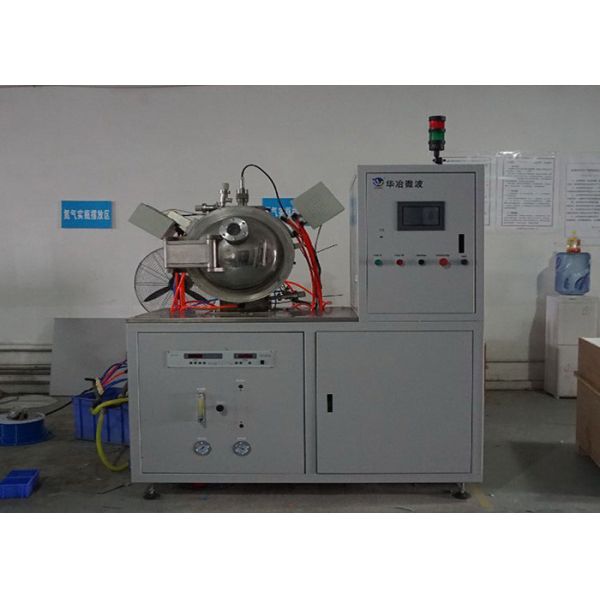

HY-QS1516E Microwave Sintering Furnace With Heating Volume of 1 Liter
HY-QS1516E Microwave Sintering Furnace With Heating Volume of 1 Liter
Specifications
Brand Name :
Huaemw
Model Number :
QS1516E
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Working Temperature :
0~1550℃
voltage :
380v
Microwave Leakage Prevention :
<2mW/cm2
Temperature Measurement Method :
infrared thermometer
Heating Space (D×H) :
Φ110×70mm
warranty :
1 year
Description

HY-QS1516E Microwave Sintering Furnace With Heating Volume of 1 Liter​

  • Product Features

For lab use, short sintering process means time efficiency since traditional sintering process is way too time-consuming. HY-QS1516E microwave and electric sintering furnace uses boths microwave absorbing SiC as well as resistance wire as heating elements, which will considerably save time for sintering.

The sintering temperature of HY-QS1516E reaches up to 1600°C, while the heating zone is surrounded by a double walled water cooling system, also the furnace is equiped with rapid cooling system ie. a high precision cooling-water machine with the flow rate of 2m3/h and the rated cooling capacity of 3.6KW.

A touch screen interface is adopted for 40 segments of parameter programming and process monitoring.

  • Applications

High temperature HY-QS1516E sintering furnace can be applied to pyrolysis, synthesis, calcination as well as other thermal treatment process under various atmosphere conditions. Besides, the pre-vaccum pumping function can substantially save time for gas exchanging.

  • Technical Parameters
Parameters HY-QS1516E
Power Voltage 380V±10V 50Hz
Rated Power 5KW
Electrical Heating Power 5KW
Microwave
System		 Microwave
Output Power		 0.10~1.40KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensityv <2mW/cm2
Thermal
Insulation System		 Tmax 1600°C
Working Temperature 0~1550°C
Heating Space
(D×H)		 Φ110×70mm
Temperature Control
System		 Temperature
Measurement Method		 infrared thermometer
Temperature
Measurement Range		 300~1800°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Atmosphere
System		 Static Ultimate
Vacuum Degree		 ≤100Pa
2 Circuits to Control Atmosphere capalble of oxidizing gas, inert gas, weak reducing gas etc.
Rotary Sealing magnetic fluid, 4~6rmp
Safety System Magnetron Alarm over temperature alarm,
over-current alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Cooling Water
Flow Alarm		 overflow alarm
Cooling
System		 High Precision
Cooling-Water Machine		 flow rate of 2m3/h,
rated cooling capacity of 3.6KW
Overall
Dimension		 Furnace Body(L×W×H) ca. 1150×850×800mm
