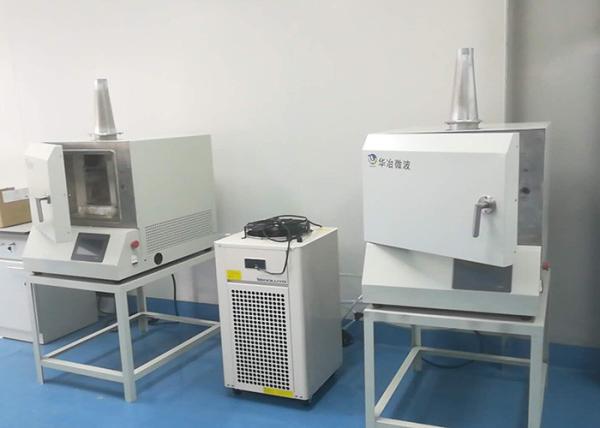

Microwave Electric Large Muffle Furnace Laboratory Equipment For Sintering
Microwave Electric Large Muffle Furnace Laboratory Equipment For Sintering
Specifications
Brand Name :
Huaemw
Model Number :
HY-MF1516E
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
microwave & electric
Working Temperature :
0~1550℃
Temperature Measurement Method :
infrared thermometer
Temperature accuracy :
±0.1%
Name :
Microwave and Electric Muffle Furnace
Classification :
Lab Heating Equipments
Description

Microwave and Electric Muffle Furnace HY-MF1516E For Sintering

  • Description

HY-MF1516E is high temperature muffle furnace with multiple heating source ie. microwave and electric, which can heat materials with higher heating efficiency, faster heating speed and better heating uniformity.

  • Applications

HY-MF1516E muffle furnace can be adapted to synthesis, ashing, thermal treatment, roasting, calcination, sintering as well as other chemical process under air atmosphere conditions.

  • Technical Parameters
Parameters HY-MF1516E
Power Voltage 380V±10V 50Hz
Rated Power 6KW
Electric Heating Power 3KW
Microwave
System		 Microwave
Output Power		 0.10~1.40KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Thermal
Insulation System		 Tmax 1600°C
Working Temperature 0~1550°C
Heating Space(L×W×H) 110×110×70mm
Temperature Control
System		 Temperature
Measurement Method		 infrared thermometer
Temperature
Measurement Range		 300~1800°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Safety
System		 Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension		 Furnace Body(L×W×H) ca. 850×650×850mm
Floor Area <1m2
Product tags

microwave sintering furnace

,

microwave ashing furnace

,

microwave muffle furnace
