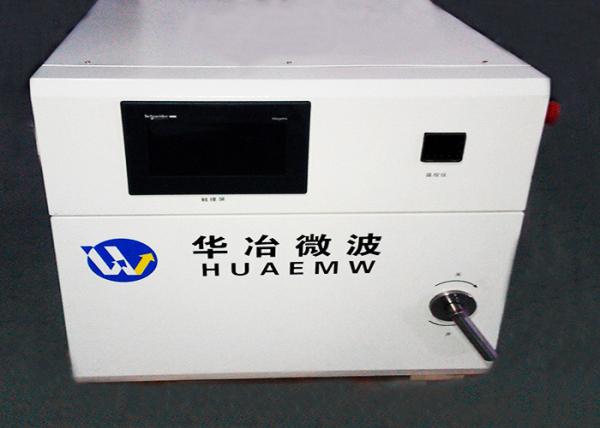

3D Printing Microwave Muffle Furnace 1400 Degrees Laboratory Furnace Ash Oven
3D Printing Microwave Muffle Furnace 1400 Degrees Laboratory Furnace Ash Oven
Specifications
Brand Name :
Huaemw
Model Number :
HY-CE6014
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
name :
industrial microwave furnace
Heating Source :
Microwave
Working Temperature :
0~1350℃
Temperature Measurement Method :
thermocouple
Chamber size :
300×300×280mm
Voltage :
380V±10V
Description

1400℃, 6KW, 3D Printing Microwave Furnace HY-CE6014 For Ceramic Sintering

  • Description

The 3D Printing Microwave Furnace HY-CE6014​ is designed specially for ceramic sintering using 3D printing technology.

The maximum temperature is 1400°C and the furnace can work constantly under 1350°C .

  • Applications

The 3D Printing Microwave Furnace HY-CE6014​ is suitable for fast sintering of ceramics with high heating efficiency and low energy consumption.

  • Technical Parameters
Parameters HY-CE6014
Power Voltage 380V±10V 50Hz
Rated Power 7KW
Microwave
System		 Microwave
Output Power		 0.10~5.60KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Thermal
Insulation System		 Tmax 1400°C
Working Temperature 0~1350°C
Heating Space(L×W×H) 300×300×280mm
Temperature Control
System		 Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0°C~1600°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Safety
System		 Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Cooling System Cooling Water Requirments flow rate≥ 2m3/h,
T≤35°C
Overall
Dimension		 Furnace Body(L×W×H) ca. 1100×600×1750mm
