HY-ZG3012 High Temperature Tube Reactor, Heating Tube Diameter 60mm Length 130mm
HY-ZG3012 High Temperature Tube Reactor, Heating Tube Diameter 60mm Length 130mm
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZG3012
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave
Working Temperature :
0~1150℃
Heating Element :
SiC
Temperature Control Precision :
±0.1%
name :
electric tube furnace
Static Ultimate Vacuum Degree :
≤100Pa
Description

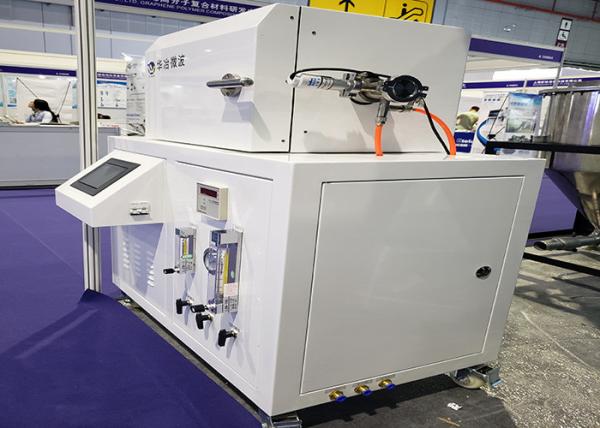

​HY-ZG3012 High Temperature Tube Furnace With Heating Space Up To Φ60×130mm

  • Product Features

Tube furnace is always adopted for processing small samples or thermal treatment in an inert atmosphere with precise temperature control.

The Microwave Tube Furnace HY-ZG3012 offers heating space up to Φ60×130mm at temperatures up to 1200°C.

HY-ZG3012 tube furnace features alumina ceramic fiber insulation, excellent temperature uniformity, fast heating and cooling speed and less energy consumption.

  • Applications

Tube furnaces can be applied to process of purification, coating, drying or ageing, apart from which, tube furnace can also be used for annealing, brazing, calcination, sintering and synthesis etc.

  • Technical Parameters
Parameters HY-ZG3012
Power Voltage 380V±10V 50Hz
Rated Power 4KW
Microwave
System		 Microwave Output Power 0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Heating Space
(diameter×width)		 Φ60×130mm
Temperature Control
System		 Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0°C~1300°C
Temperature
Control Precision		 ±0.1%
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Atmosphere System Static Ultimate
Vacuum Degree		 ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall Dimension Furnace Body(L×W×H) ca. 530×430×380mm
Rack(L×W×H) ca. 900×500×700mm
