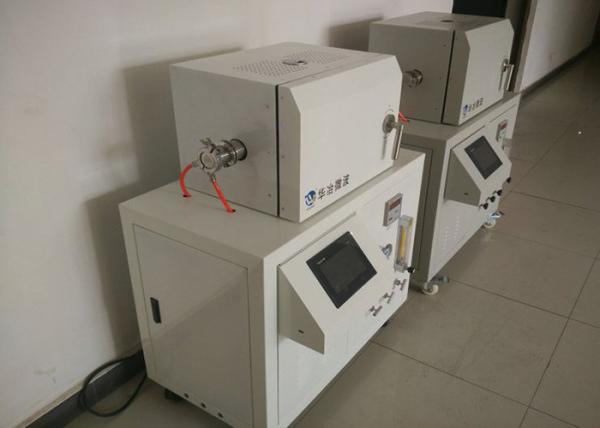

Professional High Temperature Tube Furnace HY-ZG3016 With SiC Heating Rod
Professional High Temperature Tube Furnace HY-ZG3016 With SiC Heating Rod
Professional High Temperature Tube Furnace HY-ZG3016 With SiC Heating Rod
Professional High Temperature Tube Furnace HY-ZG3016 With SiC Heating Rod
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZG3016
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
name :
Microwave Tube Furnace
Working Temperature :
0~1550℃
Chamber Size :
530×430×380mm (L×W×H)
Microwave Output Power :
0.10~2.80KW continuously adjustable
Temperature Measurement Method :
Infrared Thermometer
Static Ultimate Vacuum Degree :
≤100Pa
Description

High Temperature Microwave Tube Furnace HY-ZG3016 With SiC Heating Rod

  • Product Features

The Microwave Tube Furnace HY-ZG3016 provides short heating time and homogenous heat distribution, which is achieved by using microwave-absorbing heating conductors SiC.

The SiC heating rods are installed parallel to the working tube to ensure excellent temperature uniformity, while the alumina ceramic fiber insulation is installed around the working tube and SiC to ensure fast heating efficiency and short cooling time.

HY-ZG3016 tube furnace adopts a vertical position.

  • Applications

HY-ZG3016 high temperature microwave tube furnace provides excellent temperature uniformity and is ideal for heating small samples.

HY-ZG3016 tube furnace is an ideal choice for sintering all types of materials and is great for scientific research or industrial use.

  • Technical Parameters
Parameters HY-ZG3016
Power Voltage 380V ± 10V 50Hz
Rated Power 5KW
Microwave
System		 Microwave
Output Power		 0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal
Insulation System		 Tmax 1600°C
Working Temperature 0~1550°C
Heating Space
(diameter×width)		 Φ60×120mm
Temperature Control
System		 Temperature
Measurement Method		 infrared thermometer
Temperature
Measurement Range		 300~1800°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Atmosphere System Static Ultimate
Vacuum Degree		 ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension		 Furnace Body(L×W×H) ca. 530×430×380mm
Rack(L×W×H) ca. 900×500×700mm
