Rotary Tube Oven Rapid Heating Gas Flowmeter Air Cooling Rotary Slope Angle
Rotary Tube Oven Rapid Heating Gas Flowmeter Air Cooling Rotary Slope Angle
Specifications
Brand Name :
Huaemw
Model Number :
HY-XZ1510
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
name :
Microwave Rotary Furnace
Heating Source :
Microwave
Working Temperature :
0~1050°C
Temperature Control Precision :
±0.1%
Temperature Measurement Method :
Thermocouple
warranty :
1 year
Description

Rotary Tube Oven Rapid Heating Gas Flowmeter Air Cooling Rotary Slope Angle

  • Product Overview

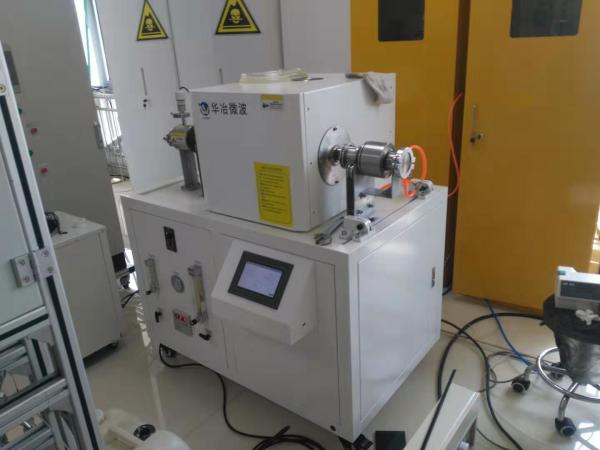

Microwave Rotary Tube Oven HY-XZ1510 is intermittent rotary tube furnace with rapid microwave heating.

Sample material can be dynamically stirred inside the furnace to ensure uniform heating and sufficient reaction. Since sample material can be heated quickly, experimental efficiency is greatly improved, while the grain size of the sintered material is small, and Mechanical Properties is good.

Gas replacement timecan be greatly saved by pre vacuumizing.

  • Applications

HY-XZ1510 is suitable for synthesis, calcination, pyrolysis, sintering and other processes in various atmospheres. It is especially suitable for the reaction, reduction and synthesis of new materials such as lithium ion battery materials.

  • Technical Parameters
Parameters HY-XZ1510
Power Voltage 220±10V 50Hz
Rated Power 3KW
Microwave System Microwave
Output Power		 0.10~1.40KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal Insulation System Tmax 1100°C
Working Temperature 0~1050°C
Heating Space (D×L) Φ40×150mm
Rotation Rate 5~30r/min
Slope Angle -5° ~ +35°
Temperature Control System Temperature Measurement Method thermocouple
Temperature Measurement Range 0~1300°C
Temperature Control Precision ±0.1%
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
AtmosphereSystem Intake Pressure ≤0.1MPa
2 Circuits to Control Atmosphere capalble of oxidizing gas, inert gas, weak reducing gas etc.
Overall Dimension Furnace Body(L×W×H) ca. 650×700×1200mm
