200°C High Pressure Homogeneous Reaction Fast Stirring Speed 1L Volume Air Cooling
200°C High Pressure Homogeneous Reaction Fast Stirring Speed 1L Volume Air Cooling
Specifications
Brand Name :
Huaemw
Model Number :
HY-GF1501
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave & Electric
Voltage :
380V±10V
Working Temperature :
≤200°C
NAME :
Pressure Reactor
Working Pressure :
3MPa
Heating Space(Volume) :
1L
Description

200°C High Pressure Homogeneous Reaction Fast Stirring Speed 1L Volume Air Cooling

  • Product Features

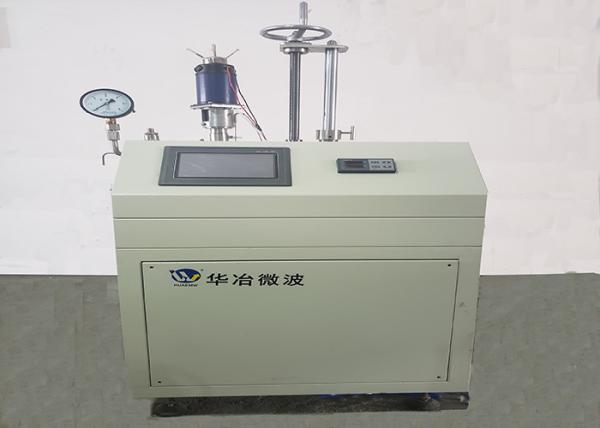

High Pressure Homogeneous Reaction Reactor HY-GF1501 is with complex heating source, ie. microwave vs resistance.

HY-GF1501 features a stainless steel cylinder rotary reaction chamber.

HY-GF1501 reactor has been designed with a working pressure up to 3MPa at temperature no more than 200°C and HY-GF1501 uses air cooling.

HY-GF1501 has a stirrring system with a stirring power of 125W and fast stirring speed of 0~750r/min.

  • Applications

HY-GF1501 is especially suitable for high presure multi phase reaction, while the stirring system ensures Homogeneous Reaction.

  • Technical Parameters
Parameters HY-GF1501
Power Voltage 380±10V, 50Hz
Rated Power 3KW
Electrical Heating Power 3KW
Microwave System Microwave Output Power 0.10~1.40KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal Insulation System Temperature ≤200°C
Heating Space(Volume) 1L
Atmosphere System Working Pressure 3MPa
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection furnace door shutdown sensor
Stirring System Stirring Speed 0~750 r/min
Stirring Power 125W
