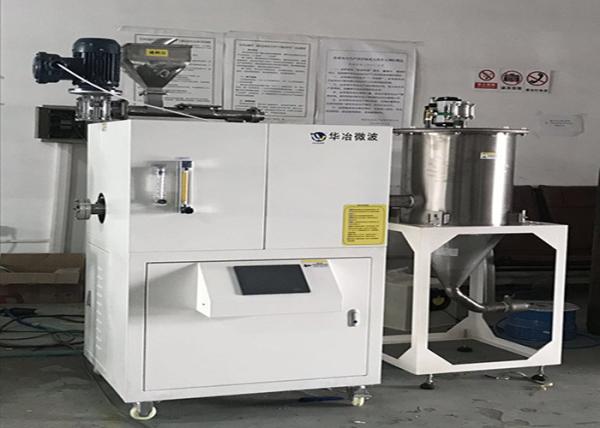

1000°C Graphene Fast Reduction Equipment Diameter 100 Millimeter Tube Automatic
1000°C Graphene Fast Reduction Equipment Diameter 100 Millimeter Tube Automatic
Specifications
Brand Name :
Huaemw
Model Number :
HY-PH3010E
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Name :
Graphite Oxide Exfoliation Furnace
Heating Source :
Microwave & Electric
voltage :
380V
Working Temperature :
0~950°C
Temperature Control Precision :
±0.1%
Temperature Measurement Method :
thermocouple
Description

1000°C Graphene Fast Reduction Equipment Diameter 100 Millimeter Tube Automatic

  • Product Features
Continuous Graphite Fast Reduction Equipment HY-PH3010E uses both industrial grade microwave and electric as heating source, which ensures highly durable heating process.
​HY-PH3010E has 2 magnetrons with 1,5kW output power to generate microwave and the total microwave output power is 0,1 to 2,8kW continuously asjustable.
HY-PH3010E uses unique quartz tube which is our original creative, while the volume of the tube is 1 liter. (100 millimeter in diameter and 150 millimeter in length)
HY-PH3010E uses K type thermocouple to measure and control temperature, the measure range is within 0 to 1300 degrees.
  • Applications

HY-PH3010E can be applied for instant reduction of Graphite Oxide to produce high quality Graphene with a production capacity of 500~1000g/day.

  • Technical Parameters
Parameters HY-PH3010E
MicrowaveSystem Microwave Output Power 0.10~2.80kW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Thermal Insulation System Tmax 1000°C
Working Temperature 0~950°C
Heating Space (D×H) Φ100×150mm
Temperature Control System Temperature Measurement Method thermocouple
Temperature Measurement Range 0~1300°C
Temperature Control Precision ±0.1%
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters, data storage and export,real-time curve data display,
dynamic data display

Safety System

 Magnetron Alarm over temperature alarm
Overall Dimension Furnace Body(L×W×H) ca. 630×530×480mm
Rack(L×W×H) ca. 900×500×700mm
