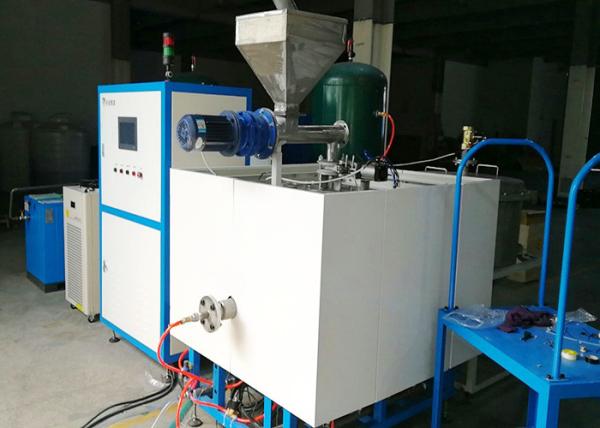

Auto Feeding Graphene Exfoliation Equipment 4 / 1.5kW Magnetrons 9kW Microwave
Auto Feeding Graphene Exfoliation Equipment 4 / 1.5kW Magnetrons 9kW Microwave
Specifications
Brand Name :
Huaemw
Model Number :
HY-PH9010
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Name :
Automatic Graphene Producing Furnace
Heating Source :
Microwave
Working Temperature :
0~950°C
Microwave Leakage Prevention :
<2mW/cm2
Temperature Measurement Method :
thermocouple
Warranty :
1 year
Description

Auto Feeding Graphene Exfoliation Equipment 4 / 1,5kW Magnetrons 9kW Microwave​​

  • Product Features

HY-PH9010 is suitable for durabel Exfoliation of graphite oxide since loading and unloading is fully automatic.

HY-PH9010 uses 6 magnetrons with 1,5kW power to generate microwave while the total microwave output power is 0,1 to 8.4kW continuously adjustable.

HY-PH9010 uses our innnovative quartz tube which is 200mm in diameter 600mm in length for industrial grade mass production.

The continuous working temp. is under 1000 degrees.

  • Applications

HY-PH9010 is designed for industrial mass Exfoliation of high-quality graphene with a producing capacity of 10~50kg per day.

  • Technical Parameters
Parameters HY-PH9010
Power Voltage 380V±10V, 50Hz, three phase
Rated Power 20KW
Microwave System Microwave Output Power 0.10~8.40KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Temperature Control System Temperature Measurement Method thermocouple
Temperature Measurement Range 0~1300°C
Temperature Control Precision ±0.1%
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
