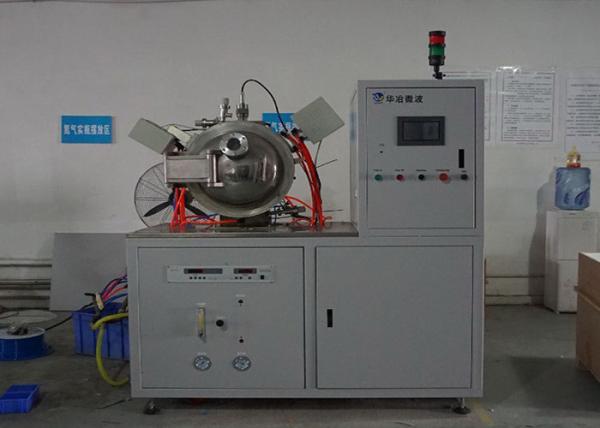

Chamber Microwave Sintering Furnace Synthesis / Sintering Of Magnetic Ceramic Powders
Chamber Microwave Sintering Furnace Synthesis / Sintering Of Magnetic Ceramic Powders
Specifications
Brand Name :
Huaemw
Model Number :
QS1516E
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Working Temperature :
0~1550℃
voltage :
380v
Microwave Leakage Prevention :
<2mW/cm2
Temperature Measurement Method :
infrared thermometer
Heating Space (D×H) :
Φ110×70mm
warranty :
1 year
Description

Chamber Sintering Furnace Synthesis / Sintering of Magnetic Ceramic Powders

  • Product Features

HY-QS1516E microwave and electric sintering furnace uses boths microwave absorbing SiC as well as resistance wire as heating elements, which will considerably save time for sintering.
1. Suitable for synthesis & sintering of magnetic ceramic powders such as LaMnO3, V2O5, CdFeO3, SrMnO3, CaMnO3.
2. Max. Temp. up to 1600°C
3. Capalble of oxidizing gas, inert gas, weak reducing gas etc.
4. Capacity of 2 Iiters and can be customized

  • Applications

High temperature HY-QS1516E sintering furnace can be applied to pyrolysis, synthesis, calcination as well as other thermal treatment process under various atmosphere conditions. Besides, the pre-vaccum pumping function can substantially save time for gas exchanging.

  • Technical Parameters
ParametersHY-QS1516E
PowerVoltage380V±10V 50Hz
Rated Power5KW
Electrical Heating Power5KW
Microwave
System		Microwave
Output Power		0.10~1.40KW continuously adjustable
Microwave Frequency2.45GHz
Microwave Leakage Preventionmicrowave leakage intensityv <2mW/cm2
Temperature Control
System		Temperature
Measurement Method		infrared thermometer
Temperature
Measurement Range		300~1800°C
Temperature
Control Precision		±0.1%
Control
System		Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Atmosphere
System		Static Ultimate Vacuum Degree≤100Pa
Rotary Sealingmagnetic fluid, 4~6rmp
Safety SystemMagnetron Alarmover temperature alarm,
over-current alarm
Furnace Door Protection Alarmfurnace door shutdown sensor
Cooling Water
Flow Alarm		overflow alarm
Cooling
System		High Precision
Cooling-Water Machine		flow rate of 2m3/h,
rated cooling capacity of 3.6KW
Overall
Dimension		Furnace Body(L×W×H)ca. 1150×850×800mm
