MPCVD Equipment, Industrial Microwave Source,Graphene Film Deposition, 2D Graphene
MPCVD Equipment, Industrial Microwave Source,Graphene Film Deposition, 2D Graphene
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZG3012E
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave & Electric
Working Temperature :
0~1150℃
Microwave Leakage Prevention :
<2mW/cm2
Temperature Control :
40 segments of programmable
Temperature Measurement Method :
Thermocouple
Static Ultimate Vacuum Degree :
≤100Pa
Description

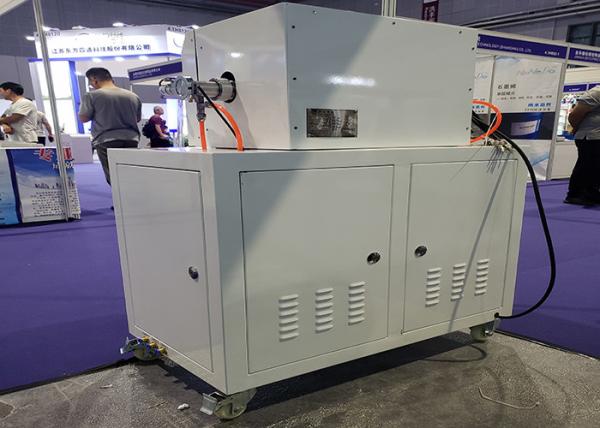

MPCVD Equipment, Industrial Microwave Source,Graphene Film Deposition, 2D Graphene

  • Product Features

HY-ZG3012E uses resistance wire as electric heating source and microwave absoring material SiC embedded within the insulation as microwave heating source.

The Static Ultimate Vacuum Degree is less than 100 Pa, HY-ZG3012E can be used for many chemical process or synthesis that requires high vacuum environment.

Users can choose S type or K type thermocouple to control can measure the temperature.

  • Applications

HY-ZG3012E can be used for MPCVD, i.e Microwave Plasma Chemical Vapor Deposition to produce 2 dimension Graphene film.

  • Technical Parameters
Parameters HY-ZG3012E
Power Voltage 380V±10V 50Hz
Rated Power 7KW
Electrical Heating Power 3KW
Microwave System Microwave Output Power 0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal Insulation System Tmax 1200°C
Working Temperature 0~1150°C
Heating Space
(diameter×width)		 Φ60×130mm
Temperature Control System Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0°C~1300°C
Temperature
Control Precision		 ±0.1%
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Atmosphere System Static Ultimate Vacuum Degree ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall Dimension Furnace Body(L×W×H) ca. 530×430×380mm
Rack(L×W×H) ca. 900×500×700mm
