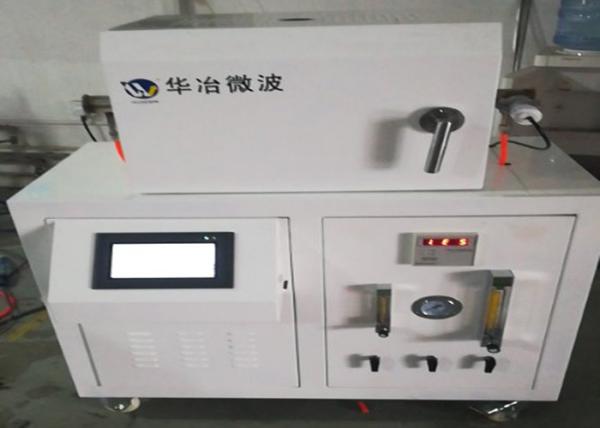

Industrial Resistance Tube Reactor Silica Tube PLC / PID Controlled Experiment
Industrial Resistance Tube Reactor Silica Tube PLC / PID Controlled Experiment
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZG3012
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave
Working Temperature :
0~1150℃
Heating Element :
SiC
Temperature Control Precision :
±0.1%
name :
electric tube furnace
Static Ultimate Vacuum Degree :
≤100Pa
Description

​Industrial Resistance Tube Reactor, Silica Tube, PLC/PID Controlled, Experiment

  • Product Features

HY-ZG3012 uses K type thermocouple for precise temperature control with a ±0.1% precision.

The measuring range of K type thermocouple is within 0~1300 degrees.

The dimension of the working tube is Φ60×130mm (diameter×width).

HY-ZG3012 tube furnace features alumina ceramic fiber insulation, excellent temperature uniformity, fast heating and cooling speed.

  • Applications

Tube furnace can be used for various thermal experiments, thernal synthesis in different atmosphere condition.

  • Technical Parameters
Parameters HY-ZG3012
Power Voltage 380V±10V 50Hz
Rated Power 4KW
Microwave
System		 Microwave Output Power 0.10~2.80KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Atmosphere System Static Ultimate
Vacuum Degree		 ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Overall Dimension Furnace Body(L×W×H) ca. 530×430×380mm
Rack(L×W×H) ca. 900×500×700mm
