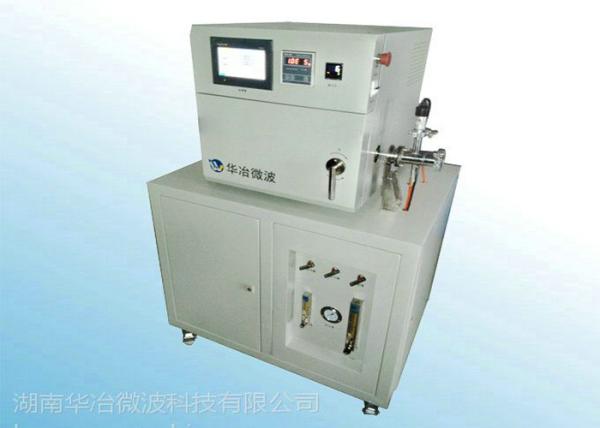

Gas Handle Nitrogen Oxygen Lab Tube Furnace Temperatures Up To 1200 Degrees
Gas Handle Nitrogen Oxygen Lab Tube Furnace Temperatures Up To 1200 Degrees
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZG1512
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
name :
Microwave Tube Furnace
Working Temperature :
0~1150℃
Microwave Leakage Prevention :
<2mW/cm2
Classification :
Laboratory Heating Equipments
Usage :
Thermal Treatment Furnance
Static Ultimate Vacuum Degree :
≤100Pa
Description

Lab Tube Furnace, Gas Handle, Temperatures Up To 1200 degrees, Nitrogen, Oxygen

  • Product Features

HY-ZG1512 is lab tube furnace that can handle oxidizing gas, inert gas, weak reducing gas etc.

HY-ZG1512 is capable of quick pre-vacuum pumping and the Static Ultimate Vacuum Degree is less than 100Pa.

Max. temperatures up to 1200 degrees.

  • Applications

The HY-ZG1512 can be used for gas reaction or synthesis process from gas mixture.

  • Technical Parameters
Parameters HY-ZG1512
Power Voltage 220V±10V 50Hz
Rated Power 4KW
Microwave System Microwave Output Power 0.10~1.40KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Heating Space
(diameter×width)		 Φ40×130mm
Temperature
Control System		 Temperature
Measurement Method		 thermocouple
Temperature Measurement Range 0°C~1300°C
Temperature Control Precision ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension		 Furnace Body(L×W×H) ca. 530×430×380mm
Rack(L×W×H) ca. 900×500×700mm
