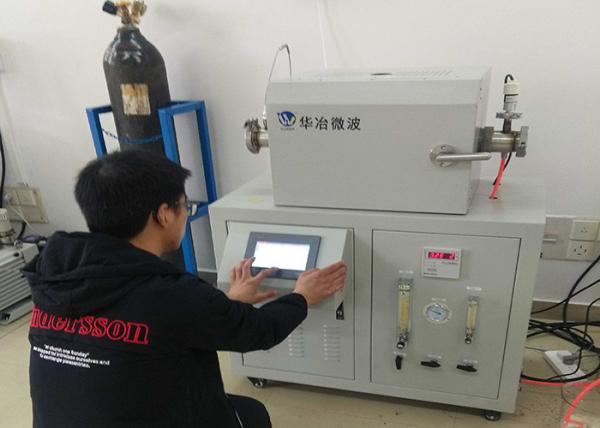

Atmosphere Horizontal Tube Furnace Equipment Mullite Tube S Type Thermocouple
Atmosphere Horizontal Tube Furnace Equipment Mullite Tube S Type Thermocouple
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZG1516
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave
Working Temperature :
0~1550℃
Voltage :
AC 220V
Temperature Control :
40 segments of programmable
Temperature Measurement Method :
infrared thermometer
Static Ultimate Vacuum Degree :
≤100Pa
Description

Horizontal Atmosphere Tube Equipment, Mullite Tube, S Type Thermocouple

  • Product Features

Atmophere Tube Furnace HY-ZG1516 is tube furnaces with fast heating speed, high heating efficiency, good product consistency and a maximum operating temperature up to 1550 °C .

Temperature control: 40 segments programmable PID Control

Users can choose working tube in different diameters, i.e 40mm or 60mm.

Users can choose from quartz, corundum and mullite working tube to meet different thermal process.

Users can choose from S type thermocouple and infrared thermometer for temperature control.

  • Applications

HY-ZG1516 high temperature microwave tube furnace that is suitable for lab or industrial use.

  • Technical Parameters
Parameters HY-ZG1516
Power Voltage 220V ± 10V 50Hz
Rated Power 3KW
Microwave
System		 Microwave
Output Power		 0.10~1.40KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal
Insulation System		 Tmax 1600°C
Working Temperature 0~1550°C
Heating Space
(diameter×width)		 Φ40×130mm
Temperature Control
System		 Temperature
Measurement Method		 infrared thermometer
Temperature
Measurement Range		 300~1800°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Atmosphere System Static Ultimate
Vacuum Degree		 ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Overall
Dimension		 Furnace Body(L×W×H) ca. 530×430×380mm
Rack(L×W×H) ca. 900×500×700mm
