Resistance Microwave Muffle Furnace Monitoring System For Debindering Zirconia Ceramics
Resistance Microwave Muffle Furnace Monitoring System For Debindering Zirconia Ceramics
Specifications
Brand Name :
Huaemw
Model Number :
HY-XS6017
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
name :
Box Type Resistance Furnace
Volume :
3 Liters
Working Temperature :
0~1650℃
Temperature Control Precision :
±0.1%
Temperature Measurement Method :
infrared thermometer
Warranty :
1 year
Description

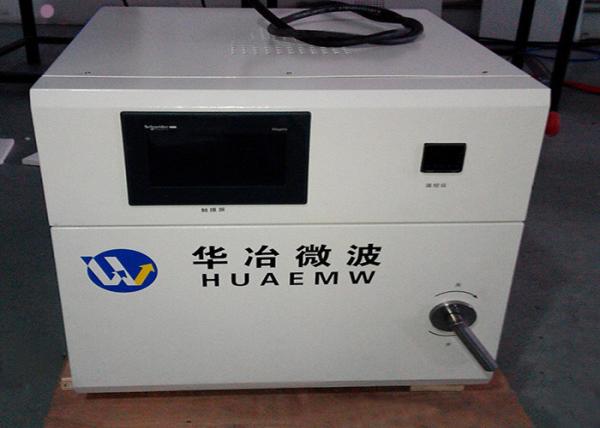

Box Type Resistance Furnace, Monitoring System For Debindering Zirconia Ceramics

  • Description

The Box Type Resistance Furnace HY-XS6017 can be applied for ceramics debindering, while features of high heating efficiency, rapid heating speed and good heating uniformity.

  • Applications

HY-XS6017 is suitable for debindering zirconia ceramics with gas exhuast moniroting system and chamber volume of 3 liters.

HY-XS6017 can handle Gas and with max. temperatures up to 1700 degrees.

  • Technical Parameters
Parameters HY-XS6017
Power Rated Power 9KW
Thermal
Insulation System		 Tmax 1700°C
Working Temperature 0~1650°C
Heating Space(L×W×H) 160×160×120mm
Temperature Control
System		 Temperature Measurement Method infrared thermometer
Temperature Measurement Range 300°C~1800°C
Temperature Control Precision ±0.1%
ControlSystem Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display, dynamic data display
Cooling System Cooling Water Requirments flow rate≥ 2m3/h,T≤35°C
Product tags

microwave sintering furnace

,

microwave sintering furnace ceramic

,

dental sintering furnace
