1.5kW Magnetrons Microwave Resistance Furnace Silicon Carbide Heating Uniformity
1.5kW Magnetrons Microwave Resistance Furnace Silicon Carbide Heating Uniformity
Specifications
Brand Name :
Huaemw
Model Number :
HY-MF1516E
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
microwave & electric
Working Temperature :
0~1550℃
Temperature Measurement Method :
infrared thermometer
Temperature accuracy :
±0.1%
Name :
Microwave and Electric Muffle Furnace
Classification :
Lab Heating Equipments
Description

1.5kW Magnetrons, Microwave/Resistance Furnace, Silicon Carbide, Heating Uniformity

  • Description

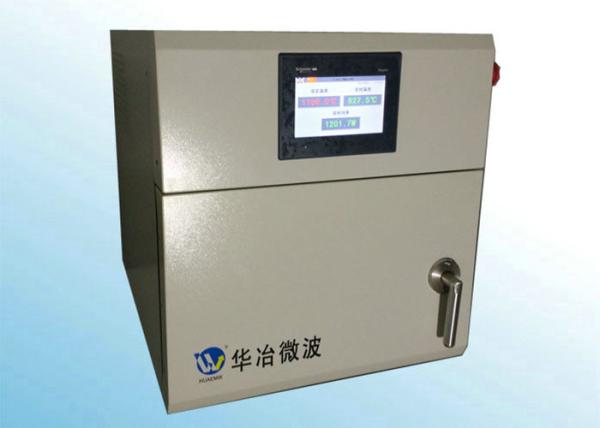

HY-MF1516E is Microwave and Resistance Furnace chamber furnace for faster heating or sintering.

Users can also use Silicon Carbide for eletric heating source.

HY-MF1516E uses infrared thermometer for temperature control, while the temperature measurement range of infrared thermometer is 300~1800°C and can reach a temperature control precision of ±0.1%.

  • Applications

HY-MF1516E muffle furnace can be adapted to synthesis, ashing, thermal treatment, roasting, calcination, sintering as well as other chemical process under air atmosphere conditions.

  • Technical Parameters
Parameters HY-MF1516E
Power Voltage 380V±10V 50Hz
Rated Power 6KW
Electric Heating Power 3KW
Microwave
System		 Microwave Output Power 0.10~1.40KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity<2mW/cm2
Thermal
Insulation System		 Tmax 1600°C
Working Temperature 0~1550°C
Heating Space(L×W×H) 110×110×70mm
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Safety
System		 Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
