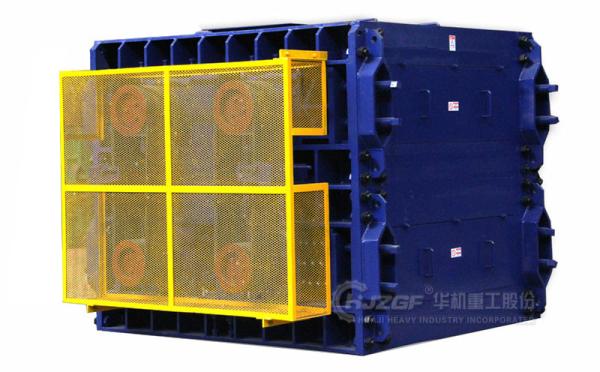

High Efficiency Coal Gangue Crusher Equipment With Three Crushing Rollers
High Efficiency Coal Gangue Crusher Equipment With Three Crushing Rollers
Specifications
Product Name :
Industrial Crushing Equipment
Feature :
High Productivity
Applicable materials :
iron ore, quartz, potassium (sodium) feldspar, limestone, river pebbles
Production capacity :
Various
Key Selling Points :
high efficiency
Condition :
New
Place of Origin :
China
Brand Name :
Huaji
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Description

coal Gangue Crusher product description

The coal gangue crusher is suitable for fine crushing operations of coal gangue materials with compressive strength less than 240Mpa and moisture content less than 15%. It has the characteristics of low maintenance costs, large crushing ratio, reliable performance, less dust, and low noise.
The coal gangue crusher is equipped with three crushing rollers. According to the crushing particle size required by the user, the combination of welding roller surface and flat roller surface can be freely selected for the three roller surfaces.
The coal gangue crusher is suitable for fine crushing operations with feed particle size less than 90mm and finished product particle size requirements of 0.2-10mm. In the absence of electricity, this equipment can be powered by diesel and gasoline engines.

coal Gangue Crusher working principle

The coal gangue crusher uses three high-strength wear-resistant alloy crushing rollers to crush coal gangue materials, which generate high extrusion pressure due to relative rotation. After entering the crushing chamber of the upper two rollers, the coal gangue materials are compressed by the relative rotation of the two rollers. After the first squeezing and grinding (coarse crushing) of the coal gangue materials, the materials immediately enter the lower two rollers (the middle roller is a shared roller) that rotate relatively, and the extrusion pressure of the lower two rollers is used for secondary squeezing and grinding (fine crushing), Crush the coal gangue into the required particle size and discharge it from the discharge port.

coal Gangue Crusher Technical Parameters

number Specification Feed size
(mm)		 Output granularity
tunable(mm)		 production capacity
(t/h)		 Motor power
Kw		 Protection mode transmission method
1 4PG-40CT ＜120 2-20 6-50 26-37 sprung
Triangle Strip
or
coupling
2 4PG-50CT ＜200 2-20 8-90 37-75
3 4PG-60CT ＜200 2-30 15-130 60-90
4 4PG-80CT(Y) ＜200 2-30 20-250 75-110
Spring
and
Hydraulic
5 4PG-100CT(Y) ＜200 2-30 30-380 90-160
6 4PG-120CT(Y) ＜500 2-30 40-480 110-190
7 4PG-150CT(Y) ＜700 2-30 65-640 150-220
8 4PG-220CT(Y) ＜700 2-30 80-800 190-250
9 4PG-350CT(Y) ＜700 2-30 100-1000 220-300
