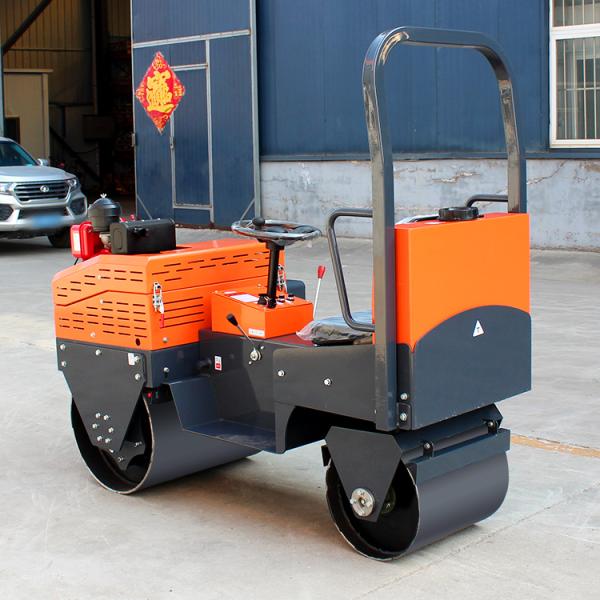

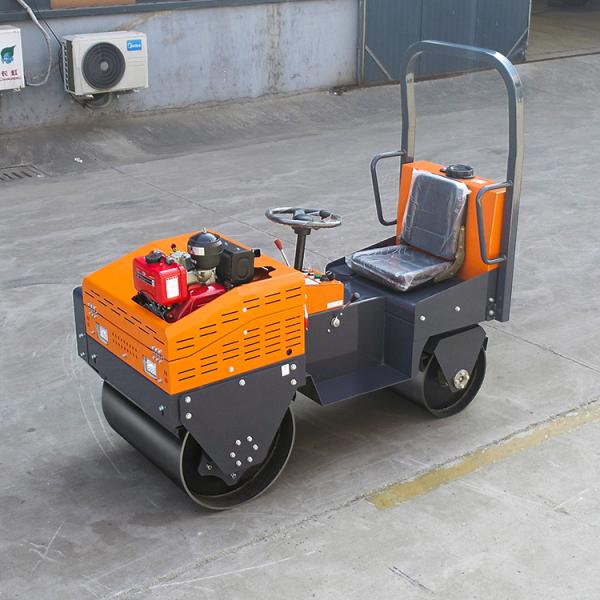

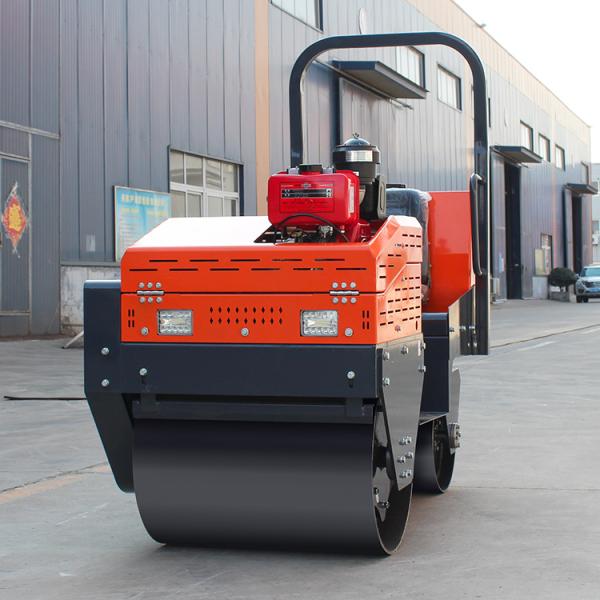

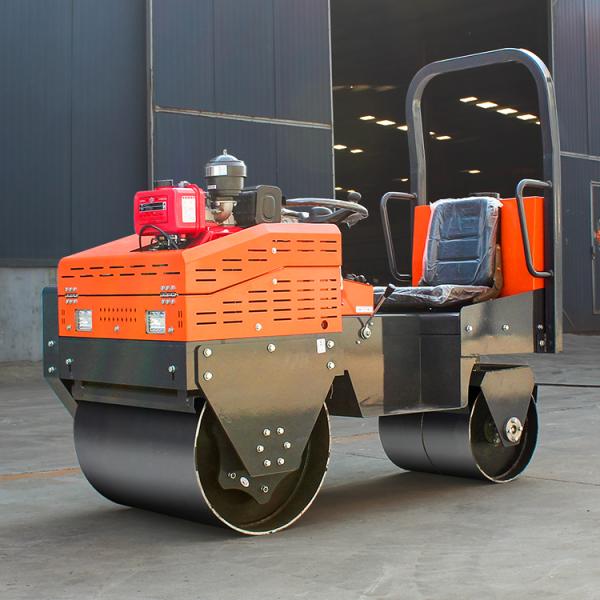

4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
Canada, Russia, UAE, Tajikistan
Condition :
New
Type :
Vibratory Roller
Travel Speed :
0-4km/h
Grade Ability :
30%
Place of Origin :
Shandong, China
Brand Name :
HUAQI
Power :
4.8 Kw, 5.5 KW
Dimension(L*W*H) :
1430 x 980 x 1750mm
Weight :
500kg
Warranty :
1 Year
Hydraulic Pump Brand :
Huade
Hydraulic Valve Brand :
HYDAC
Engine Brand :
Kubota
UNIQUE SELLING POINT :
EPA Engine
Drum diameter :
850mm
Drum :
Double Drum Roller
Exciting Force :
20KN
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Motor, Pump, Engine
Product Name :
1.0T Single Drum Seat-Driven Roller
Starting Method :
1000 Single Drum Seat-Driven Roller
Fuel Tank Capacity :
3.5L
Drive Method :
Hydraulic Transmission
Excitation Frequency :
70Hz
Water Tank Capacity :
45 L
Keywords :
Wheel Roller
Vibration Type :
Automatic Clutch/Electromagnetic Clutch
Nominal Amplitude :
0.5mm
Static Linear Load :
45N/cm
Price :
$1,850.00/sets 1-9 sets
MOQ :
1 unit
Description
Discounted
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery

Low Price Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery

Efficient Performance: Our 1.0T Seat-Driven Roller delivers excellent speed and vibration frequency, ensuring efficient compaction for a wide range of construction projects. Powerful Climbing Ability: With a theoretical climbing ability of 30°, this roller can easily navigate challenging terrains, making it ideal for uneven surfaces and hilly areas. Durable Construction: Built with high-quality materials and advanced engineering, our roller is designed to withstand heavy-duty usage, ensuring long-lasting performance and reliability. Versatile Vibration Options: The electromagnetic clutch enables flexible vibration modes, allowing operators to adjust as per specific compaction requirements, enhancing versatility on the job site.
Product Description
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
Specification
Parameter
Value
Model
1.0T Seat-Driven Roller / 1000 Seat-Driven Roller
Speed
0-5 km/h (forward and reverse)
Theoretical Climbing Ability
30°
Nominal Amplitude
0.5 mm
Vibration Frequency
70 Hz
Fuel Tank Capacity
3.5 L
Water Tank Capacity
45 L
Fuel Consumption
313 g/kWh
Centrifugal Force
20 kN
Steel Wheel Width
Front: 700 mm, Rear: 500 mm
Drive Mode
Hydraulic Transmission
Steel Wheel Diameter
Front: 560 mm, Rear: 425 mm
Vibration Mode
Electromagnetic Clutch
Packaging Size
2030 x 1010 x 1380 mm
Start Mode
Manual Pull/Electric Start
Operating Weight
1000 kg
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
Company Profile
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
Product packaging
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
Certifications
4.8 Kw Diesel Engine 1 Ton 2 Ton 3 Ton Compactor Road Roller Construction Machinery
FAQ
1.Factory We are factory road roller manufacturer. 2. Warranty Our road roller have a one year quality warranty. 3.Markets We had sold our road roller to USA, Canada, Brizal, German, Spain, France, Italy, Dubai, Malaysia, India,Australia etc.. 4. Packing Full container loading with 6 pcs road roller, for LCL shipping, we'd pack the excavator with wooden packing. 5. Lead time For stocked road roller, we could ship the road roller within 7 days after payment, for customized road roller, we need some more days to customized them and shipping within 10 days.
