Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Condition :
New
Type :
Vibratory Roller
Travel Speed :
0-6km/h
Grade Ability :
30%
Place of Origin :
Shandong, China
Brand Name :
HUAQI
Power :
132 KW, 4.8 Kw, 15.7 kw, 5.5 KW, 3.7 KW, 4kw
Dimension(L*W*H) :
1430mm x 980mm x 1750mm
Weight :
500kg
Warranty :
1 Year
Hydraulic Pump Brand :
Kawasaki
Hydraulic Valve Brand :
Huade
Engine Brand :
CHANGCHAI
UNIQUE SELLING POINT :
EPA Engine
Drum diameter :
425mm
Drum :
Single Drum Roller
Exciting Force :
15KN
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Motor, Pump, Engine
Product name :
Mini Road Roller
Keywords :
Asphalt Road Roller
Name :
Gasoline Road Roller
Brand :
Small Road Roller
Speed :
0-4 km/h (Forward/Reverse)
Nominal Amplitude :
0.5mm
Vibration Frequency :
70Hz
Fuel Tank Capacity :
2.5L
Water Tank Capacity :
17L
Fuel Consumption :
≤310g/kW.h
Price :
$2,000.00/sets 1-9 sets
MOQ :
1 unit
Description
Product Description
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed

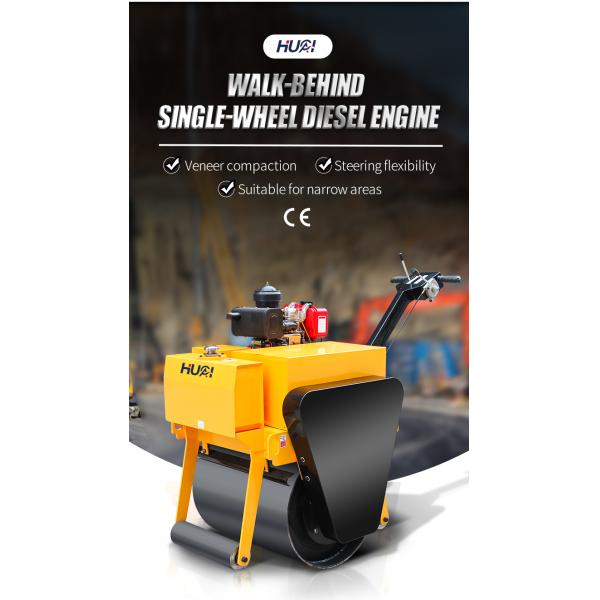

0.5 Ton Small Road Roller Vibrator Compactor Used Asphalt Roller

The 700c Handheld Single Wheel Roller is a powerful and agile compaction machine designed to take on the toughest construction challenges. Building upon the success of its predecessor, the 600c, this advanced model elevates performance and efficiency to new heights. Discover the unique features that make this roller stand out: Enhanced Power: Equipped with a robust 6HP engine and a high-frequency vibration of 70Hz, the 700c delivers an impressive combination of power and precision, ensuring outstanding compaction results in less time. Superior Climbing Ability: With a theoretical climbing ability of 30°, this roller effortlessly conquers inclines and uneven terrains, providing optimal compaction across various surfaces.
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Specification
Feature
Specification
Model
700c Handheld Single Wheel Roller
Speed
0-4 km/h (Forward/Reverse)
Engine Brand
Changfa/Changchai
Theoretical Climbing Ability
30°
Engine Model
178
Nominal Amplitude
0.5mm
Vibration Frequency
70Hz
Fuel Tank Capacity
3.5L
Water Tank Capacity
25L
Static Linear Load
45N/cm
Exciting Force
20KN
Steel Wheel Width
700mm
Drive Mode
Hydraulic Station
Steel Wheel Diameter
560mm
Vibration Type
Automatic Clutch/Electromagnetic Clutch
Packaging Dimensions
1430mm x 980mm x 1750mm
Start Mode
Manual Start/Electric Start
Operating Weight
500kg
Company Profile
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
Small Road Roller Vibrator Compactor with 0.5mm Nominal Amplitude and 0-4 km/h Speed
FAQ
1. Are you original manufacturer? A: Yes, we are Shandong Huaqi Machinery Co.,Ltd. 2. What kind of payment terms can be accepted? A: Normally we can worked on T/T 3. Which incoterms 2010 terms can we work? A: Normally we can worked on FOB (QINGDAO), CFR, CIF 4. What about the delivery time? A: Within 7-10 days after receiving the deposit 5. What about the warranty time? A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight. 6. What about the Minimum Order Quantity? A: The MOQ is 1 unit.
