Specifications
Place of Origin :
Beijing
Brand Name :
HUATEC
MOQ :
1pcs
Packaging Details :
Standard export package
Delivery Time :
1-4days
Payment Terms :
T/T, Paypal, Western Union
Model Number :
Automatic Weld Size Weld Gage Cambridge Type Weld Gauge
Certification :
ISO, CE, GOST
Material :
Stainless steel
Brand :
HUATEC
Supply Ability :
500pcs per month
Description

X-Ray Flaw Detector MG-8 Cam Type Weld Gauge / Welding Gauge Series Taper gauge

WELDING GAUGE SERIES

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

Wide-seat square Taper gauge
spec:63*40-630*400mm

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

180°malleable iron square MG-11(metric system)

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

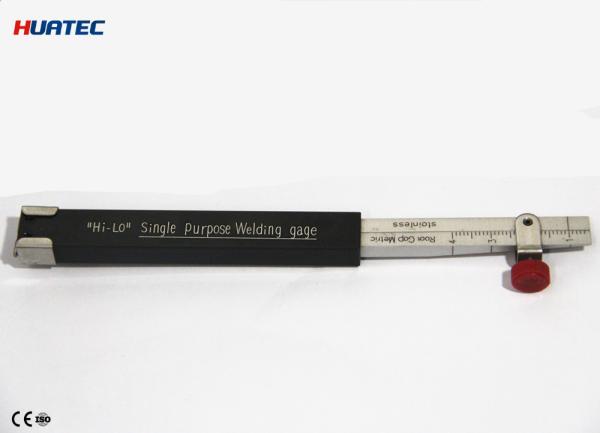

G.A.L. HI-LO Welding Gauge Measures internal Alignments G.A.L ECONOMY Single Purpose HI-LO Welding Gauge


Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

Automatic Weld Size Weld Gauge FAN-SHAPED Gauge

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

BITING EDGE GAUGE

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

MG-8 Cam Type Weld Gauge MG-11 Cam Type Weld Gauge

Measurement Items

Range

Parameters

Tools

Width

0—20mm

0.2

0.02 vernier caliper

Height

0—12mm

Plug gauge, tabulate gauge

Width of Fillet Weld

0—20mm

Movable Bevel Angle

20°, 30°,
40°, 50°,
60°, 70°, 80°

±2°

±30' angle gauge

Single-side Bevel Angle

117.5—122.5

±30'

±10″universal gauge

Bevel Angle

45°, 55°,
60°, 65°

±30'

±10″universal gauge

Gap Size

0.5-3.5mm

0.1

0.02 vernier caliper

Welding Gauge Model HJ30

The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.

It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge Welding Gauge ModelHJC60/40

The gauge consists of main scale, height gauge, undercut depthgauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.

It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.

Welding Gauge ModelHJC60

Measurement Items

Range

Tolerance of Indicating Value

Height

Surface Height

0—15

0.2

Height of Fillet Weld

0.2

Thickness of Fillet Weld

0.2

Width

0—60

0.3

Undercut Depth of Welding Seam

0—5

0.1

Bevel Angle of Welding

80—160

30

Gap Size

0.5—6

0.1

Welding Gauge ModelHJC40

Measurement Items

Range

Tolerance of Indicating Value

Height

Surface Height

0.2

Height of Fillet Weld

0—12

0.2

Thickness of Fillet Weld

0—15

0.2

Width

0—40

0.3

Undercut Depth of Welding Seam

0—5

0.1

Bevel Angle of Welding

≤150

30

Gap Size

0.5—5

0.1

Pipe pit gauge

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge

Inspection mirror

Automatic Weld Size Weld Gage Cambridge Type Weld Gauge Welding Gauge Series Taper gauge
