HVS-M-A Vickers Hardness Measuring System Camera 1.3M pixel 1pc
HVS-M-A Vickers Hardness Measuring System Camera 1.3M pixel 1pc
HVS-M-A Vickers Hardness Measuring System Camera 1.3M pixel 1pc
HVS-M-A Vickers Hardness Measuring System Camera 1.3M pixel 1pc
Specifications
Brand Name :
HUATEC
Model Number :
HVS-M-A
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Packaging Details :
Standard export package
Delivery Time :
1-4days
Description

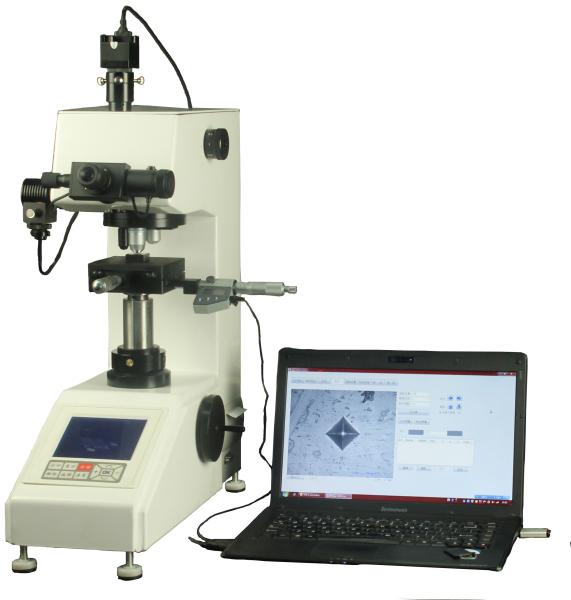

HVS-M-A Vickers Hardness Measuring System

HVS-M-A Vickers Hardness Measuring System Camera 1.3M pixel 1pc

1. This system can match a variety of Vickers hardness tester to upgrade stand-alone hardness tester or computer measuring system.

2. This measuring system can be integrated with the hardness tester HV-1MD; computer-controlled for auto turret and brightness adjustment etc.

3. Suitable for micro and Vickers hardness tester, the maximum test force can be 1, 5, 10, 30, 50Kg.

4. Image with high resolution and indentation measurement by auto or manual;

5. Digital X-axis value, and automatically enter the program automatically generates the deep layer of hardness distribution curve (option);

6. Calibration using micrometer or hardness block, can be calibrated automatically;

7. Hardness converted to other hardness scales according to ASTM standard.

8. Statistics for hardness values and alarm for hardness values out of range;

9. Easy to install, use laptops instead of desktop computers;

10. Interface is simple and easy to use without training;

11. Test reports can be customized; all testing data can be saved for long time and easy for historical inquiry.

12. Digital camera with 1280*1080 pixels, 1/2-inch, USB 2.0

HVS-M-A Vickers Hardness Measuring System Camera 1.3M pixel 1pc

Standard Configuration:

Camera 1.3M pixel 1pc

Interfacing hardness and camera 1pc

CD-ROM containing the software and manuals 1pc

Dongle 1

Lenovo's commercial computer

Optional Accessories

1. Digital X-Y Stage 1pc

Digital accuracy of X & Y axis: 1μm.

The position of X axis can enter into the hardness measuring program directly, and the program can automatically calculate hardness along depth distribution curve and effective hardened layer depth.

2. Lenovo Computer 1pc
