Specifications
Brand Name :
HUATEC
Model Number :
HGS923
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1-4days
Packaging Details :
Standard export package
Overall value Output :
4-20mA or 1-5V
Case :
2.stainless steel, air-tight, electrical isolation to reduce ground disturbance
Working temperature :
-20~80 oC
Mount :
4.M5 screw
Accuracy :
5%(may depend on range)
Transmitter Size :
98x73x30(mm)
Power :
20~30V(DC)
Output mode :
2-line loop power or 3-line(power, output, and ground)
Measurement accuracy (include accelerometer) :
8.3dB(Full frequency Range), 1dB(>2.5Hz), 0.5dB(>4Hz)
Description

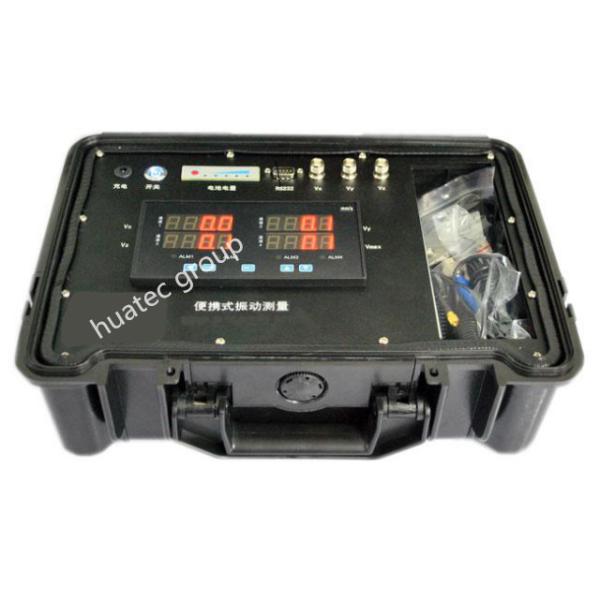

HGS923 Vibration Monitoring & Recording System

HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring

For continuous monitoring, Vibration transmitter + Recorder, 4 Channel Max, LCD display, Data save locally, Upload by RS485/232, USB, GPRS, Modem, Radio. Printer

Features:

l Overall value Output: 4-20mA or 1-5V, Displacement, Velocity, Bearing condition or Acceleration, True RMS, Equivalent Peak or Equivalent Peak-Peak (factory Optional)

l Optional dynamic waveform Output for FFT analysis at transmitter

l LCD displays of real-time & history curve, numerical values, and bar graph

Specification:

  • Accelerometer:

  • Shear-mode Ceramic piezoelectric

2. Case: stainless steel, air-tight, electrical isolation to reduce ground disturbance

3. Working temperature: -20~100oC or -20~180oC(high temperature type)

4. Mount: M5 screw

  • Transmitter:
  • Amplitude Range(To be defined, Default is Velocity 25mm/s) & Frequency Range:
  • Displacement(Equivalent Peak-Peak): 3mm, 1.2~1000Hz or 10~1000Hz
  • Velocity(True RMS): 25mm/s, 1.2~2000Hz or 10~2000Hz
  • Acceleration(Equivalent Peak): 100m/s2, 1.2Hz~10kHz or 10~1000Hz
  • Bearing condition(Acceleration envelope): 25 m/s2, 1.2Hz~2kHz demodulated
  • Working temperature: -20~80 oC
  • Accuracy: 5%(may depend on range)
  • Transmitter Size: 98x73x30(mm)
  • Power: 20~30V(DC)

6. Output mode:2-line loop power or 3-line(power, output, and ground)

7. 4-20mA Output:

  • Maximal transmit distance: 1km
  • Protection: open circuit, short circuit.

8. Measurement accuracy (include accelerometer): 3dB(Full frequency Range), 1dB(>2.5Hz), 0.5dB(>4Hz)

  • Display, Recorder and Alarming

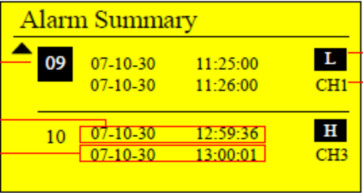

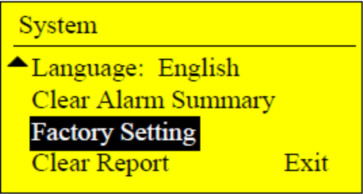

1. LCD display, 3 inch, 128x64 dots, Sample frequency 1Hz,

2. Alarm: relay contact capacity: 250V 3A, 4-levels thresholds, 4 seconds alarm delay

HGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous MonitoringHGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous MonitoringHGS923 4 Channel Vibration Meter , Vibration Monitoring & Recording System For Continuous Monitoring
