Specifications
Brand Name :
HUATEC
Model Number :
XXG-3205
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1-4days
Packaging Details :
Standard export plywood package
Output voltage :
170-320kv
Output :
170-320KV
Input :
2.5KW
Focus spot :
2.5x2.5
Max penetration :
55mm
Material :
Steel
Radiation angle :
40±5°
Usage :
Industrial X-Ray Testing,weld testing,Industrial x ray testing machine
Power supply :
AC220V±10%,50HZ
Application :
Industrial X-Ray Testing,welding seam detecting
Warranty :
12 Months
Exposure time :
5 minutes
Controller size :
350*290*170mm
Generator size :
335×335×700mm
Generator weight :
43kg
Tube :
Ceramic
Description

320KV Ceramic tube penetrant 40mm Directional Radiographic inspection machine

Main technical parameters

ITEM

 XXG3205
Max Penetration thickness Steel (A3) 55mm
Focal Distance 600mm
Exposure Time 5min
Film Type Agfa D7

Double lead foil Intensifying screen

 0.03
Darkroom Disposal 20±2℃
Development 5minutes
Blackness 1.5
Input Voltage (V) 220V±10% 50―60Hz
Capacity (KVA) 3.2
Output Tube voltage (KVP) 170-320Kv
Tube current (mA) 5
Stability ±1%

X-RAY

Tube

 Focus mm2 2.5×2.5
Radiation Angle 40±5°
Sensitivity k≤1.8%
Operation Mode Intermittent operation, Radiating time to cooling time is 1:1

X-Ray

Controller

 Dimension 350×290×160
Weight 11kg
Circuit Structure Micro-computer control ,Modular structure,Voice prompt

X-RAY

Generator

 Cooling Force air cooling
Insulation SF6 Gas Insulation
Working Pressure 0.35Mpa-0.45Mpa
Dimension 335×335×700
Weight (kg) 43kg
Working Temperature -10℃―+40℃

Standard Delivery

Directional glass X-ray tube 1 Pcs
Generator 1 Set 　
High voltage joins cable 1 Pcs 25 Meters
Controller 1 Set 　
Power cable 1 Pcs 10 Meters
Grounding cable 1 Pcs 5 Meters
Accessories 1 Set 　
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)

X-Ray Directional Radiographic Inspection Machine Ceramic Tube Penetrant 50mm
X-Ray Directional Radiographic Inspection Machine Ceramic Tube Penetrant 50mmX-Ray Directional Radiographic Inspection Machine Ceramic Tube Penetrant 50mm

System Installation

1.Check and count all goods to be received per the packing list. And then check the quality of the parts for damage,lost and mistake.

2.Keep the controller in a flat,dry and dustless place, switch off the power and connect the power cable.

(Note:

The power supply of the unit is single phase 220V±10% 50-60HZ)

3.If necessary,one end of earth wire can be connected to the earth terminal of the controller and the other end to the special grounding wire.

4.Connect controller to x-ray generator by special 9 cores cable,and form better contact.

5.Check the gas pressure gauge on x-ray generator and make sure it range from 0.35Mpa to 0.45Mpa.If not,the unit is not allowed to turn on so as to avoid any damage to the x-ray generator.

Working Principle

This machine is composed of intelligent controller-ray generator, power cable and connecting cable.

1.The controller will consist of the following sections:

Front Panel: LED display, status and failure indicator, touch keyboards (see the introduction of control panel)

Side Panel: power cable socket and connecting cable socket, power switch,key switch, fuse socket, warning lamp and wire connecting terminal of door-machine interlock.

Internal Circuit: power circuit, rectifying circuit, filter circuit, inverter circuit, control circuit and other circuited.

2.The x-ray generator will consist of the following sections:

X-ray tube, High voltage transformer, Temperature relay, Gas pressure gauge and Cooling fan etc.

3.The schematic diagram of the complete machine:

Optional accessories:

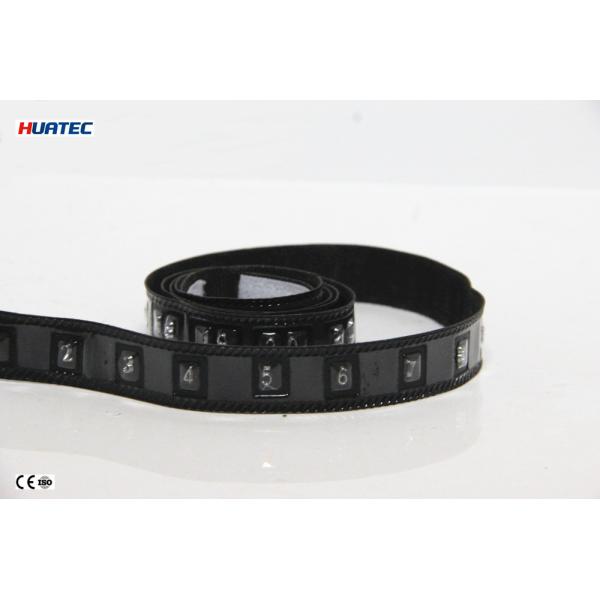

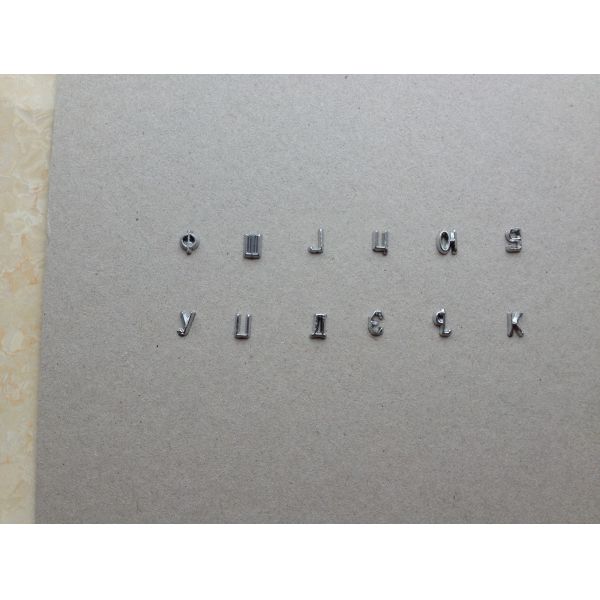

Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.

X-Ray Directional Radiographic Inspection Machine Ceramic Tube Penetrant 50mmX-Ray Directional Radiographic Inspection Machine Ceramic Tube Penetrant 50mmX-Ray Directional Radiographic Inspection Machine Ceramic Tube Penetrant 50mm
