Specifications
Brand Name :
HUATEC
Model Number :
RHL-40B
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs per week
Packaging Details :
in carton
Name :
Hardness Tester
Measuring range :
(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
Display :
segment LCD
Data memory :
max. 100 groups
Hardness scale :
HL,HB,HRB,HRC,HRA,HV,HS
Communication interface :
RS232
Warranty :
12 months
Power supply :
3V(2 AA size alkaline battery)
Description

RHL-40B Portable Hardness Tester Segment LCD Display With Software Calibration Function

Features:

l Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.

l Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

l Large screen (segment LCD), showing all functions and parameters. With EL background light.

l Large capacity memory could store 100 groups information.

l Datapro Software to connect with PC via RS232 port. Micro printer support

l Software calibration function.

Technical Specifications:

l Measuring range:

(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB

l Measuring direction:360°

l Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

l Display:segment LCD

l Data memory:max. 100 groups(relative to impact times 32~1)

l Working voltage:3V(2 AA size alkaline battery)

l Continuous working period:about 100 hours(With backlight off)

l Communication interface:RS232

Main Application

l Die cavity of molds

l Bearings and other parts

l Failure analysis of pressure vessel, steam generator and other equipment

l Heavy work piece

l The installed machinery and permanently assembled parts.

l Testing surface of a small hollow space

l Material identification in the warehouse of metallic materials

l Rapid testing in large range and multi-measuring areas for large-scale work piece

Configuration:

No. Item Quantity Remarks
Standard Configuration 1 Main unit 1
2 D type impact device 1 With cable
3 Standard test block 1
4 Cleaning brush (I) 1
5 Small support ring 1
6 Alkaline battery 2 AA size
7 Manual 1

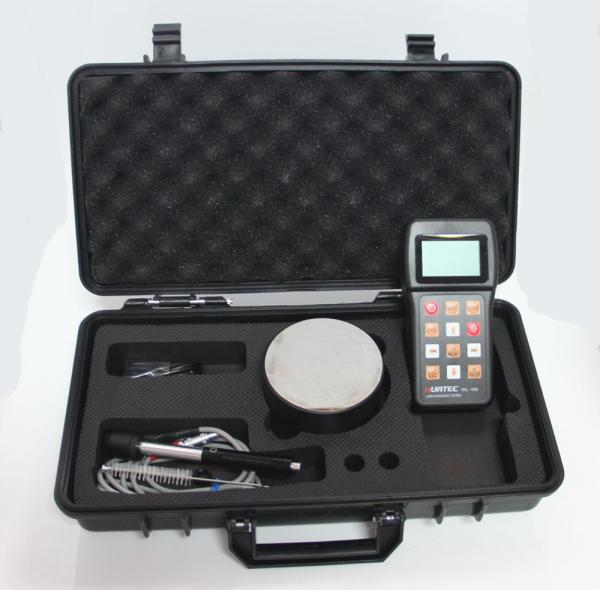

8 Instrument package case 1
Optional Configuration 9 Cleaning brush (II) 1 For use with G type impact device
10 Other type of impact devices and support rings Refer to Table 3 and Table 4 in the appendix.
11 DataPro software 1
12 Communication cable 1
13 Micro Printer 1
14 Print cable 1
