Specifications
Brand Name :
HUATEC
Model Number :
CX-230 CX-430
Certification :
ISO, CE, GOST
Place of Origin :
Beijing
MOQ :
10pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1-4days
Packaging Details :
Standard export package
Material :
DT4A electromagnetic pure iron plate
Color :
Metal surface presents bright silver, no rust.no scratch, no corrosion and so on
Planeness :
Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.005inch
length of test piece :
0.79inch×0.79inch
average thickness of test piece :
cx4-230 is 0.002inch
diameter of symbol :
0.235inch
thickness of test piece cx4-230 :
0.002inch
groove depth :
0.0006inch
groove width :
0.006inch
Description

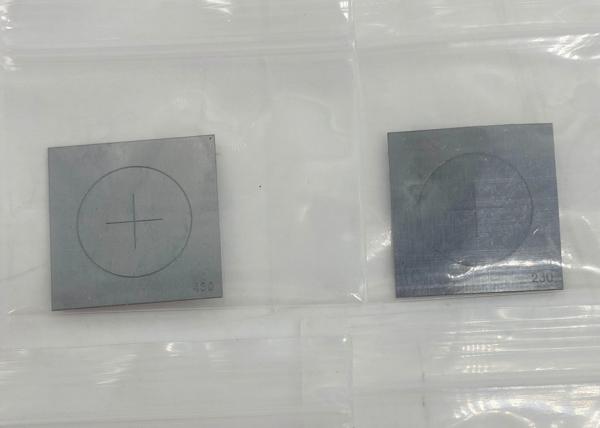

ASME-2007 PAGE Number V Test Shim Test Piece Of Magnetic Particle Testing CX-230

Test Shim Of Magnetic Particle Testing CX-230

inspection items The condition, method and demand of the test inspection demand
Color Metal surface presents bright silver, no rust.no scratch, no corrosion and so on Past muster
Planeness Put the test piece on bare board, parallel completely.no wrinkle.no burts.the surface’s roughness RA is 0.005in Past muster
The size of sheet iron and cutting groove

The side length of test piece tested by milscale is 0.79inch×0.79inch.

The average thickness of test piece cx4-230 is 0.002inch.The artificial detect symbol four“ASME-2007 Magnetic Particle Testing PAGE Number V Test Shim Test Piece CX-230”tested by precision microscope are both on the center of the test piece. The diameter of symbol four“ASME-2007 Magnetic Particle Testing PAGE Number V Test Shim Test Piece CX-230”is 0.235inch.

The thickness of test piece cx4-230 is 0.002inch.the groove depth is 0.0006inch,the

groove width is 0.006inch.

 Past muster
Quality

The physics and chemistry test show the result that the metal is made from DT4A electromagnetic pure iron plate.

The analytic result of raw materials accords with the rule of GB6985,

 Past muster

ASME-2007 Magnetic Particle Testing PAGE Number V Test Shim Test Piece CX-230

Other Magnetic flaw detectors test block:

MT test block

ASME-2007 Magnetic Particle Testing PAGE Number V Test Shim Test Piece CX-230

Type N1: 45N, 5kgs

Type N2: 118N 12kgs

Type N3: 177N 18kgs

MT standard block

ASME-2007 Magnetic Particle Testing PAGE Number V Test Shim Test Piece CX-230

Katos rong type B: DC HRC=90～95, 12 drilling through holes diameter 0.07inch, center hole diameter 31.8mm

ASME-2007 Magnetic Particle Testing PAGE Number V Test Shim Test Piece CX-230

Type E: AC
