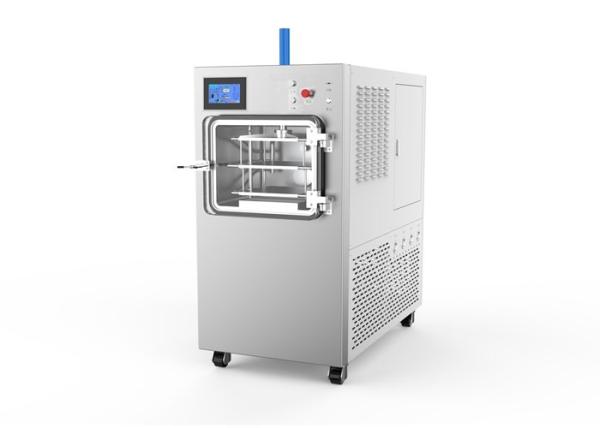

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation
0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation
Specifications
Brand Name :
HUATAO
Model Number :
HT-Freeze Dryer Machine
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 2500-50000 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
12000 sets per year
Delivery Time :
25-30 working days
Packaging Details :
Standard export packaging
Drying Area :
0,2m2
Minimum temperature of cold trap :
≤ - 75 ℃
Water capture capacity :
≥6Kg/Batch
Limit vacuum degree :
≤ 5pa
Cooling mode :
Air cooling
Overall power :
3800w
Description

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation

Product Description of Freeze Dryer Machine

HT-20FDA-Y Freeze Dryer Machine is widely used in medicine, pharmacy, biological research, chemical industry, food, and other fields. The freeze-dried articles are easy to be stored for a long time. After adding water, they can return to the state before freeze-drying and maintain the original biochemical characteristics.

Technical Parameters of Freeze Dryer Machine

Product description In Situ Silicone Oil Freeze Dryer Machine
Drying area 0.2m2
Number of diaphragm layers 2+1
Temperature range of diaphragm - 50 ℃ - + 70 ℃
Diaphragm temperature difference ± 1 ℃ (at balance)
Partition spacing 120mm
Partition size 300*340mm
Minimum temperature of cold trap ≤ - 75 ℃
Overall power 3800w
Overall weight About 350kg
Water capture capacity ≥6Kg/Batch
Liquid in tray 2L
Defrosting Electric defrosting
Limit vacuum degree ≤ 5pa (no-load)
Cooling mode Air cooling
Overall dimension 1280*850*1550+200mm
Ambient temperature ≤ 25 ℃
Voltage 220V/50HZ

Main Features of Freeze Dryer Machine

1. The transparent door of the drying bin is made of aviation acrylic material, with no adhesion, high strength, and no leakage. The change process of materials can be observed during operation.

2. Imported brand compressor, stable and low noise.

3. Brand vacuum pump with high pumping speed.

4. The pre-freeze drying is carried out in situ, which reduces the cumbersome operation of the drying process and realizes the automation of the freeze-drying process.

5. Simulate the operation window interface, vividly reflect the operation status of each component, and display the current operation parameters of each part in digital form.

Application Photos of Freeze Dryer Machine

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation
