Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Data Machine 1000mN Paper Tearing Tester
Specifications
Brand Name :
HUATAO
Place of Origin :
CHINA
MOQ :
1 set
Price :
200-500 USD PER SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 SET PER WEEK
Delivery Time :
10-15 DAYS
Packaging Details :
wooden box and paperboard box
Surface Treatment :
Without Processing
Manufacturing Process :
Casting
Material :
Stainless Steel
Measuring Range :
10 ~ 1000
Tear Arm :
104 ±1mm
Initial Tear Angle :
27.5 + 0.5 °
Description

Paper Tearing Tester / paper tearing data machine


Paper tear tester is a proprietary instrument for measuring the tear strength of paper. Its main technical indicators and performance parameters are in accordance with the relevant requirements of "Measurement of Paper Tear Degree" and "Measurement Method of Paper Tear Degree". It is applicable to the measurement of tear strength of various papers, and can also be used for lower strength. Determination of the tear of cardboard.

1,Paper Tearing Tester / paper tearing data machine data sheet

Measuring range: (10 ~ 1000) mN, of which standard pendulum (10 ~ 1000) mN, graduation value 10 mN, light pendulum (10 ~ 500) mN, graduation value 5 mN, lightest pendulum (10 ~ 200) mN, minute The degree of 2mN instrument is equipped with a standard pendulum. (Light pendulum, lightest pendulum, special order according to user requirements)
Indication error: within the range of 20% ~ 80% of the upper measurement limit, the value is ± 1%, and the soil outside the range is 0.5% FS.
Indication repeatability error: <1% within the range of 20% to 80% of the upper limit of the measurement, <0.5% FS outside the range..
Tear arm: 104 ±1mm
Initial tear angle: 27.5 + 0.5 °
Tear distance: 43 soil 0.5mm
Paper surface size: 25 x 15mm
Distance between paper clips: 2.8 soil 0.3mm

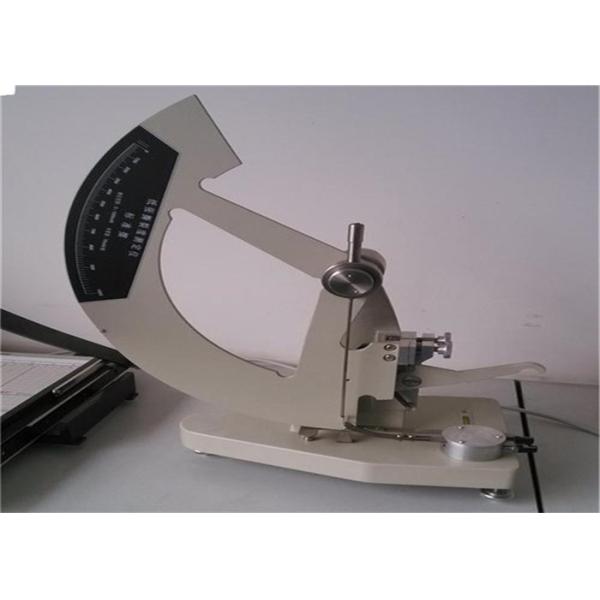

2,Paper Tearing Tester / paper tearing data machine picture

Data Machine 1000mN Paper Tearing Tester
