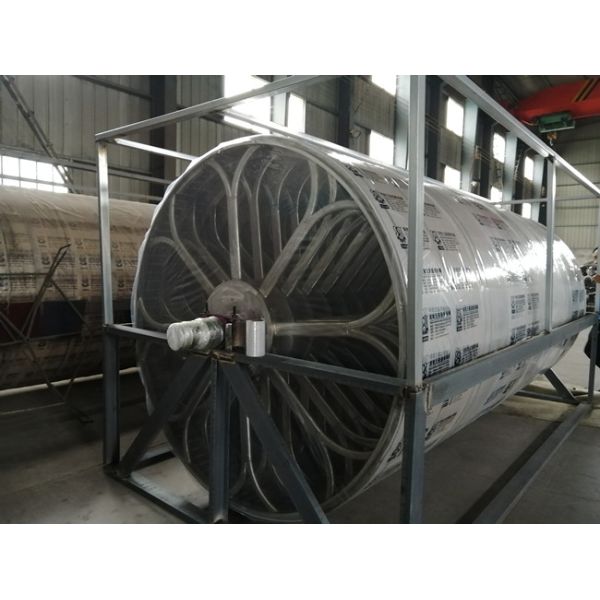

Paper Mill Industrial SS 1500mm Cylinder Mold
Paper Mill Industrial SS 1500mm Cylinder Mold
Paper Mill Industrial SS 1500mm Cylinder Mold
Paper Mill Industrial SS 1500mm Cylinder Mold
Specifications
Brand Name :
HUATAO
Model Number :
SS-002
Place of Origin :
CHINA
MOQ :
1 set
Price :
By negotiation
Supply Ability :
10 set per month
Delivery Time :
15 work days
Packaging Details :
Wooden crate
Sheet Former Type: :
Cylinder Mould
Industry :
Paper mills
Product Name :
SS Cylinder Mould
Dia :
1500mm
Face Length :
2000mm
Spindle Nose :
45# Round Steel Conditioning
Description

Paper Mill Industrial SS Cylinder Mould

1.Paper Mill Industrial SS Cylinder Mould Description

1.Cylinder section:1500mm×2350×2900mm stainless steel cylinder mould 1set,equipped with bearing (113622) and one set Pulp-spraying Pressure former,speed regulation holy roll make the finished paper with good evenness.Consistency is about 0.1-0.15%,mesh count(90-100)more than 2layers .Which the pulp go on the mesh ,it will not throw pulp and not leave any trace during the production,the finished paper can have good tension ,strength and evenness in vertical and horizontal.
2.Couch roll section:Size of couch roll is 450mm×2350×2900mm,material of roll body is seamless steel pipe.Thickness is 14mm .Roll surface is coated by rubber ,rubber thickness is 25mm .Rubber ,rubber hardness HSD 38ºC±2,equipped with bearing(113518).
3.Frame:Frame of cylinder section is welded with shaped steel.Thickness is 10mm.
4.Washing device of cylinder section:Pulp-spraying Pressure former adapt water pressing type.Spray pipe DG32 stainless steel .Ceramics hard wearing nozzle .
5.Felt washing section:High pressure cleaning device 2 sets,spray pipe washer adapt water pressing type .Spray pipe DG32 stainless steel .Ceramics hard wearing nozzle .

2.Paper Mill Industrial SS Cylinder Mould Specification

1 Product name Cylinder mould
2 Type Ф1500X2100
3 Matched beaeing 113520
4 Structure Stainless steel wound type
5 Main axis Ф219
6 Wheel spoke Cast iron HT150
7 Bar diameter 12*2100
8 Belt 1.5
9 Spindle nose 45# round steel conditioning
10 Diameter 1500mm
11 Face length 200mm
12 Diameter of SS stick 12mm
13 Qty of SS stick 80
14 Qty of middle support chip 14 pcs
15 Thickness of SS strip 15mm
16 Diameter of axis 180mm

3. Paper Mill Industrial SS Cylinder Mould Packing & Delivery

Products will packaged according to their shapes, weight, transport distance and transport modes.Large machines will be packaged in sections.Every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
Transportation:

Products will be transported according to their features and clients's needs.Air, train and sea transportation are all available.

4.Our Service

1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.Send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service
