Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line
Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line
Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line
Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line
Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line
Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line
Specifications
Brand Name :
HUATAO
Model Number :
Huataobelt-002
Place of Origin :
CHINA
MOQ :
10M2
Price :
Price accept negotiation
Payment Terms :
Western Union, T/T,, L/C
Supply Ability :
60000M2/YEAR
Delivery Time :
15-20days
Packaging Details :
Wooden box
Material :
Synthetic Material
Thickness :
9±0.3mm
Wdith range :
1000mm - 3200mm
Heat resistance :
220℃,the kevlar edge upto 350℃
Weight :
7.5kg/m2
Length :
80m
Application :
BHS,TCY,automatic corrugator line
Color :
white
Description

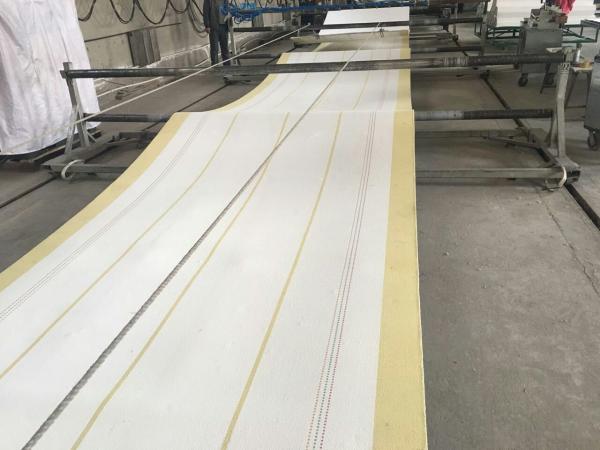

Aramid Edge Corrugator Belt High Durability For BHS, FOSBER, MARQUIP Corrugator Line

Description

Aramid Edge Corrugator Belt High Durability is a consistent development based on the proven woven high speed corrugator belt range .Also is ideal for corrugating systems with high production speeds , even load systems and frequently changing paper widths .

we also supply : needle corrugator belt , woven corrugator belt ,single facer traction belt

Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line

Corrugator belt -Features

Suitable as top belt with high speed (above 150m/min ) production

Heat and Super tear resistance

Inwoven Aramid edge to reinforce the belts , reduce wear substantially and ensure a longlife time .

Particularly for frequent changes of board width

More Popular in the all corrugators plant.

Corrugartor Belt Specification

Product Inwoven Aramid Edge Belt - kevlar edge
Thickness 9mm
Width range 1000mm - 3200mm
Length 80 meters
Heat-resistance 240℃ (the kevlar edge upto 350℃)
Tensile strength 70Mpa
Coefficient of friction ≥ 0.40µ
Weight per unit (7.5±0.3)kg/㎡
Air-permeability 40mm water Column 2.0m³/㎡ min
Seam Hot JAW lacing/Clipper with rubber coated
Edge 100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position Top belt

Used on all corrugators high tearing resistance

Long life time running High abrasion resistance

Moisture absorption Heat resistance Low noise

Corrugator Belt Seam

Model1: Fastener Clipper With Rubber

Model2: Hot JAW Lacing

Corrugator Belts Package

Type - I : Waterproof film+Dampblanket+Plasticbag+pallet

Type - II : Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet

Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.

Aramid Edge Corrugator Belt High Durability For BHS , FOSBER , MARQUIP Corrugated Line

Corrugator Belt Offer

1. Your corrugator brand & Running speed :

2. Top corrugator belt size :

3. Lower Corrugator belt size :

Advantages

High grade material

Safety packing to protect

High absorption of moisture

High durability

Maximum flexibility

Suitable for machine speed 50 - 300M/min

Goodrunningwith low noise

Tear strength

Less trimming

Long life time running
