HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
Specifications
Brand Name :
Huatao Lover
Model Number :
HT-Drainage Board
Certification :
CE/ISO9001/ISO14001
Place of Origin :
China
MOQ :
500m2
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Square Meter/Square Meters per Week
Delivery Time :
5-8 work days
Packaging Details :
black HDPE plastic film
Material :
HDPE
Thickness :
5m-8m
Lenth :
50m
Weight :
Light weight
Description

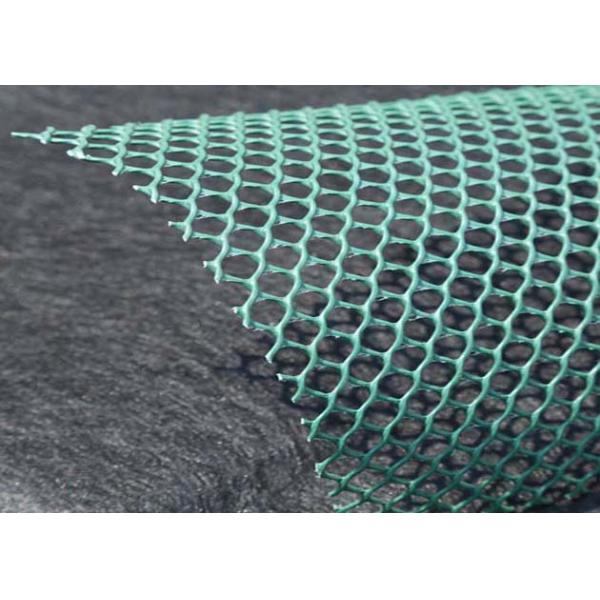

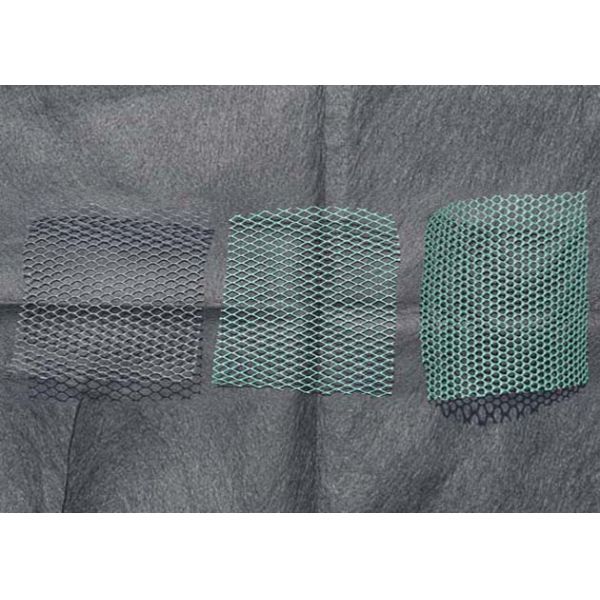

HDPE Geonet 2D Drainage Geonet With Good Flexibility Black and Green color 50m/roll

Two-Dimension Drainage Geonet Description:

Two-Dimension Drainage Geonet with high density polyethylene (HDPE) as raw materials, through special process, the two root rib in a certain distance and Angle arrangement, staggered at the intersection of double rib form drainage channel. Has high tensile strength and compressive strength, rib between a drainage channel in the higher load is out of shape not easily, it can prevent geotextile

embedded geotextile net core, ensure drainage unblocked.

Two-Dimension Drainage Geonet Feature:

1.Aging resistance

2.Erosion resistance

3.Good Flexibility

Two-Dimension Drainage Geonet Application:

1. Using the geonet on the roadbed of the roadway and railway can distribute the load effectively, improve the loading capacity and the stability of the roadway, and prolong its service life.

2. Spreading the geonet on the slope of road can prevent landslides, conserve water and soil, beautify the environment.

3. Spreading the geonet in the dyke protection in the reservoir and the river can protect it from the landslide.

4. Using the geonet in the coast engineering can amortize the concussion and the erosion of the surf.

Two-Dimension Drainage Geonet

Drainage netwrok core units Specification
Unit weight g/m2 750 1000 1300 1600 1800
Thickness OV=20kpa mm 5.0 6.0 7.0 7.6 8.0
Hydraulic conductivity m/s K x 10 -4 K x 10 -4 K x 10 -3 K x 10 -3 K x 10 -3
Elongation % ＜50
Tensile strength ( core network) KN/m 8 10 12 13 14
Geotextile g/m2 200-200

HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll

HDPE 2D Drainage Geonet Geosynthetics Material With Good Flexibility Black and Green Color 50m / Roll
