Steel Aluminum Trasmission Parts Synchronous Timing Belt Pulley
Steel Aluminum Trasmission Parts Synchronous Timing Belt Pulley
Steel Aluminum Trasmission Parts Synchronous Timing Belt Pulley
Steel Aluminum Trasmission Parts Synchronous Timing Belt Pulley
Specifications
Brand Name :
HUATAO
Model Number :
T016
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
10-1000USD per pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per day
Delivery Time :
7
Packaging Details :
Standard exporting packing
Material :
Steel/Aluminum Alloy
Surface :
Painting/Oxygenation/Galvanize/Electricpainting
Shapes :
A/B/C/W and more
Tooth Typesment: :
MXL/XXL/XL/L/H/XH/XXH/2M/3M/5M/8M/14M and more Trapezoidal/Arc Tooth/S Tooth/Parabolic Tooth
Holes Types  :
Straight Hole/Tapered Hole/D Shape
Description

Steel Aluminum Trasmission Parts Synchronous Timing Belt Pulley

Timing belt pulley is a very important component in the mechanical transmission. There are various types of timing belt pulleys, classified by tooth shape, mainly including trapezoidal teeth timing belt pulley and arc teeth timing belt pulley.

When installing the belt pulley, it is necessary to pay attention to some details. For example, when installing the timing belt on the pulley, avoid using too much force or prying with hard objects to avoid damaging the timing belt. If the center distance of two belt pulley can be moved, the center distance should be shortened first, and the center distance should be reset after installing the timing belt. At the same time, it is necessary to ensure that the axis is parallel and that the frame supporting the pulley has sufficient stiffness.

The application of synchronous pulleys is extensive, with the advantages of accurate transmission ratio, no slip, smooth transmission, low noise, large transmission speed ratio range, high allowable linear speed, and high transmission efficiency. Therefore, synchronous pulleys play an important role in various mechanical transmission systems.

Technical parameters:

Type

bw

hg

Y+1.5°

rb

rt

2k

MXL

0.84±0.05

0.69

20

0.35

0.13

0.508

XXL

1.14±0.05

0.84

25

0.35

0.30

0.508

XL

1.32±0.05

1.65

25

0.41

0.64

0.508

L

3.05±0.10

2.67

20

1.19

1.17

0.706

H

4.19±0.13

3.05

20

1.60

1.6

1.372

XH

7.90±0.15

7.14

20

1.98

2.39

2.794

XXH

12.17±0.18

10.31

20

3.96

3.18

3.048

Applications:

Conveyor belts, forklifts, packaging machines, inkjet printers, lifts, freezers, fans, wire cutting machines, printing presses, gripping robots, vending machines, coding machines, punching machines, rewinders and other mechanical equipment.

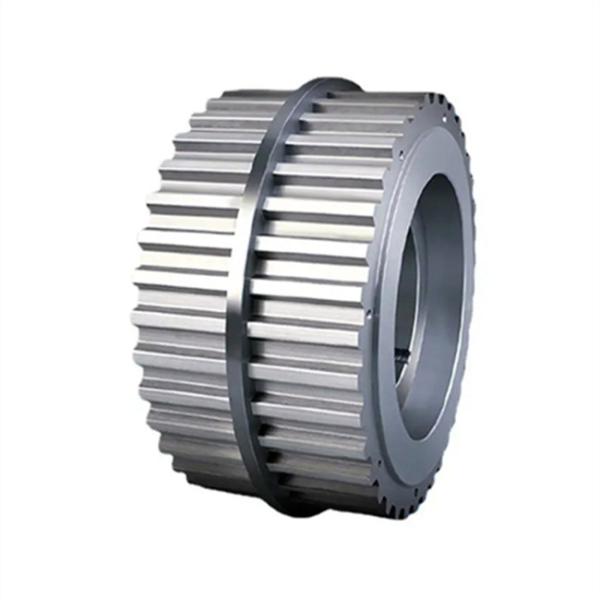

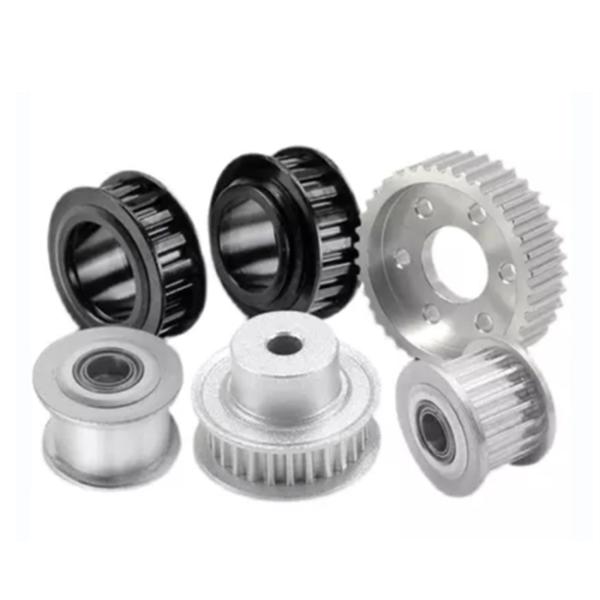

Reference Photos:

Steel Aluminum Trasmission Parts Synchronous Timing Belt PulleySteel Aluminum Trasmission Parts Synchronous Timing Belt Pulley
