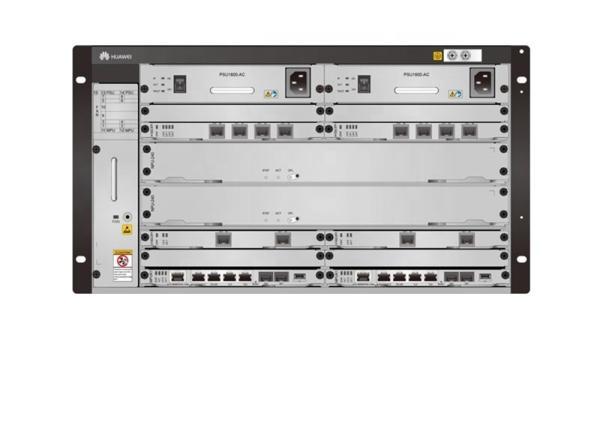

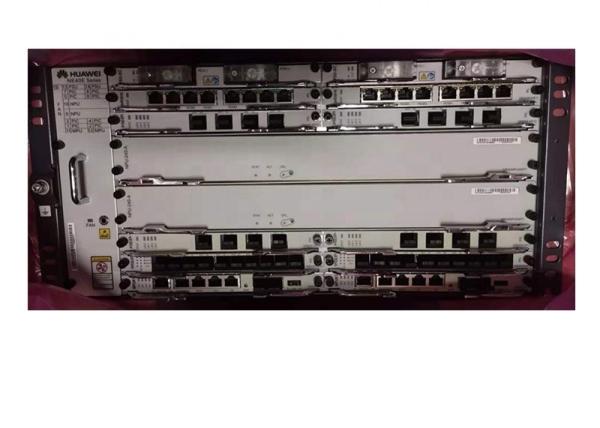

02350RHR NE40E-X2-M8A Huawei Telecom Router Integrated AC Chassis CR5B0BKP0275
02350RHR NE40E-X2-M8A Huawei Telecom Router Integrated AC Chassis CR5B0BKP0275
02350RHR NE40E-X2-M8A Huawei Telecom Router Integrated AC Chassis CR5B0BKP0275
02350RHR NE40E-X2-M8A Huawei Telecom Router Integrated AC Chassis CR5B0BKP0275
Specifications
Brand Name :
Huawei
Model Number :
NE40E-X2-M8A
Place of Origin :
China
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Products Status :
Stock, Used
Ports :
>= 8
Transmission Rate :
>50 Mbps
Function :
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Switch Capacity :
>100 Gbps
Description :
NE40E-X2-M8A Integrated AC Chassis Components
Dimensions (H x W x D) :
264 mm x 442 mm x 220 mm (10.39 in. x 17.4 in. x 8.66 in.)(6U)
Weight :
8.5 kg (18.74 lb)
Cabinet installation standard :
ETSI 21-inch; IEC 19-inch
Availability :
0.999999588
Slot quantity :
8
Redundant power supply :
1+1
Storage altitude :
Lower than 5000 meters
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
02350RHR Huawei NE40E-X2-M8A Integrated AC Chassis Components CR5B0BKP0275

02350RHR CR5B0BKP0275

Device Attributes
BOM
Model
Product Type
Description
02350RHQ
CR5B0BKP0277
NE40E-X2-M8A DC
NE40E-X2-M8A Integrated DC Chassis Components
02350RHR
CR5B0BKP0275
NE40E-X2-M8A AC
NE40E-X2-M8A Integrated AC Chassis Components
03031EDK
CR5D0MPUK170
MPUK1
Main Processing Unit K1
03030QDP
CR5D00MPUK70
MPUK
Main Processing Unit K

Interface Numbering
Numbering rule of service interfaces on the NE40E-X2-M8A
Interface Numbering
Numbering rule of service interfaces on the NE40E-X2-M8A
Service interfaces on the NE40E-X2-M8A are numbered in the following format: 0/subcard slot number/interface number on the subcard.
* A subcard slot number is the number of the slot where an interface's subcard resides. A subcard slot number ranges from 1 to 8.
* An interface number on the subcard starts with 0, and its maximum value is determined by the actual number of interfaces on the subcard.
The following figure shows how a service interface is numbered on the NE40E-X2-M8A.
Numbering rule of service interfaces
Product Positioning
The Huawei NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A are high-end network products used to access, aggregate, and transmit carrier-class Ethernet services on Fixed-Mobile Convergence (FMC) Metropolitan Area Networks (MANs).
The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A run on the Versatile Routing Platform (VRP) operating system developed by Huawei and use hardware-based forwarding and non-blocking data switching technology. The NE40E-X1-M4, NE40E -X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A feature carrier-class reliability, line-speed forwarding capability, perfect quality of service (QoS) mechanism, service processing capabilities, and good extensibility.
The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A provide strong capabilities in network access, Layer 2 switching, and transmission of Ethernet over Multiprotocol Label Switching (EoMPLS) services. The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A also support rich interface types and provide broadband access, triple play, IP leased line, and virtual private network (VPN) services. The NE40E-X1-M4, NE40E-X2-M8, NE40E-X2-M8A, NE40E-X2-M16 and NE40E-X2-M16A can also work in conjunction with the CX, NE, and ME devices developed by Huawei to set up a hierarchical metro Ethernet that provides rich services for customers.

Technical Specifications

Item
Specification
Dimensions (H x W x D)
DC: 222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)(5U)
AC: 264 mm x 442 mm x 220 mm (10.39 in. x 17.4 in. x 8.66 in.)(6U)
Weight (default configuration)
DC:7.1 kg (15.66 lb)
AC:8.5 kg (18.74 lb)
Cabinet installation standard
ETSI 21-inch; IEC 19-inch
Typical power consumption
DC:649 W(NPU-240)
AC:667 W(NPU-240)
DC:1009.2 W(NPU-480)
AC:1063.2 W(NPU-480)
Typical heat dissipation
DC:2105.6 BTU/hour(NPU-240)
AC:2164 BTU/hour(NPU-240)
DC:3274.3 BTU/hour(NPU-480)
AC:3449.5 BTU/hour(NPU-480)
DC input voltage
input voltage range: -40V to -72V
input rated voltage: -48V/-60V
AC input voltage
input voltage range: 180V to 264V
input rated voltage: 200V to 240V/100V to 127V dual live wires
MTBF
138.61 years
MTTR
0.5 hours
Availability
0.999999588
Slot quantity
8
Redundant MPUs
4.24E-02
Redundant NPUs
1:01
Redundant fans
If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C.
Redundant power supply
1+1
Forwarding performance
50 Mpps(NPU-50)
180 Mpps(NPU-120)
180 Mpps(NPU-240)
330 Mpps(NPU-480)
Switching capacity
100 Gbps(NPU-50)
240 Gbps(NPU-120)
480 Gbps(NPU-240)
960 Gbps(NPU-480)
