Huawei CloudEngine CE8800 Series Data Center Switches

Huawei CloudEngine 8800 series (CE8800) switches are 100G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 100 GE/40 GE/25 GE/10 GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE8800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric for cloud-computing data centers.

CE8800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.

Product Specifications

The CE8800 series is available in the following models:

CE8860-4C-EI

CE88-D16Q

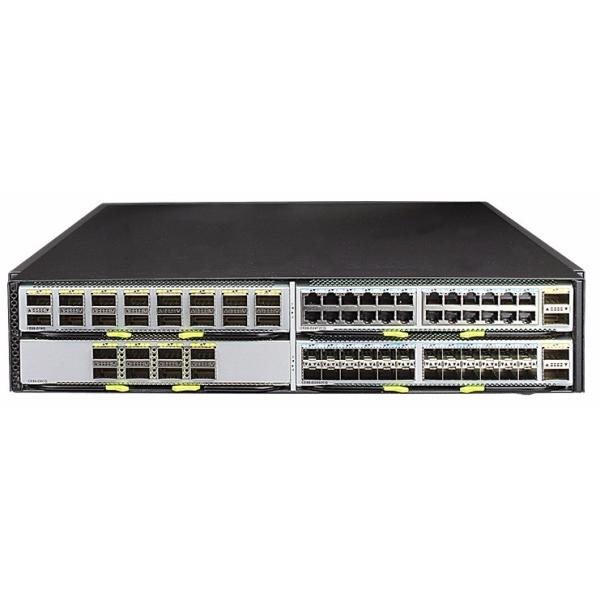

16-port, 40G Ethernet optical (QSFP+) Subcard CE88-D16Q

Ordering information(CE8800)

Ordering Information
1. Mainframe

CE8860-4C-EI-F CE8860-4C-EI switch (4 subcard slots with airflow from the fan module panel to the front panel (with ports and without power module))
CE8860-4C-EI-B CE8860-4C-EI switch (4 slots with airflow from the front panel (with ports) to the fan module panel, without power module)

2. Subcard
CE88-D8CQ 8-port, 100G Ethernet optical (QSFP28)
CE88-D16Q 16-port, 40G Ethernet optical (QSFP+)
CE88-D24T2CQ 24-port, 10G Ethernet electrical (RJ45) and 2-port 100G Ethernet optical (QSFP28)
CE88-D24S2CQ 24-port, 10G Ethernet optical (SFP+) and 2-port 100G Ethernet optical (QSFP28)

3. Fan Box

FAN-180A-F, Fan box (F, FAN panel side intake)
FAN-180A-B, Fan box (B, FAN panel side exhaust)

4. Power Supply

PAC-1K2WA-F 1,200W AC and 240V DC power module with airflow from the power module panel to the front panel (with ports)
PAC-1K2WA-B 1,200W AC and 240V DC power module, with airflow from the front panel (with ports) to the power module panel
PHD-1K2WA-F 1,200W high-voltage DC power module with airflow from the power module panel to the front panel (with ports)
PHD-1K2WA-B 1,200W high-voltage DC power module with airflow from the front panel (with ports) to the power module panel

5. Software

CE88-LIC-NPV, CloudEngine 8800 FCoE NPV Function
CE88-LIC-FCF16, CloudEngine 8800 FCF 16 Ports

CE88-LIC-FCFAL, CloudEngine 8800 FCF All Ports
CE88-LIC-VXLAN, CloudEngine 8800 VXLAN Function
