Specifications
Place of Origin :
China
Brand Name :
Huawei
Model Number :
ME60
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Switching Capacity ME60-X3 :
1.08 Tbit/s
Switching Capacity ME60-X8 :
7.08 Tbit/s
Switching Capacity ME60-X16 :
12.58 Tbit/s
Switching Capacity ME60-X16A :
50.32 Tbit/s
Switching Capacity ME60-X8A :
25.16 Tbit/s
Forwarding Performance ME60-X3 :
360 Mpps
Forwarding Performance ME60-X8 :
2,880 Mpps
Forwarding Performance ME60-X8A :
5,760 Mpps
Forwarding Performance ME60-X16 :
5,760 Mpps
Forwarding Performance ME60-X16A :
11,520 Mpps
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Huawei ME60 X3 X8 X16 Router BRAS ME60-X3 ME60-X8 ME60-X16

The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes.

The ME60 uses Huawei-developed Solar series NP chips. In addition, the ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbit/s platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment.

The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, carries multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. By using the ME60 and corresponding solutions, operators can construct a future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.

Product Appearance

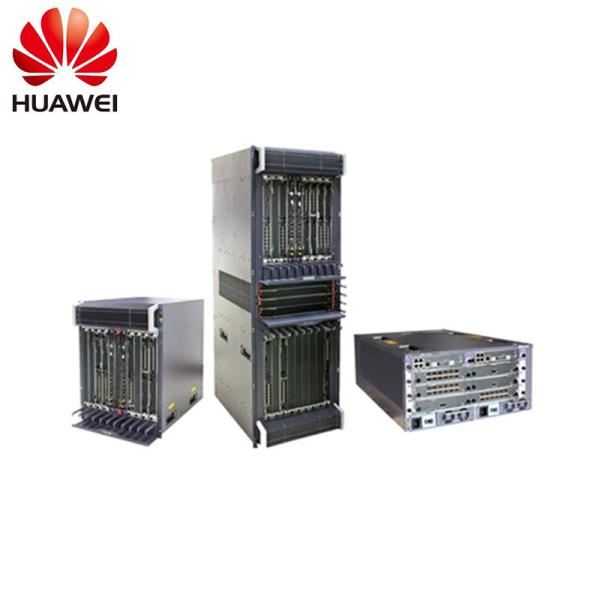

The ME60 series includes the following models, which can meet the requirements of networks of various scales: ME60-X16A, ME60-X8A, ME60-X16, ME60-X8, and ME60-X3.

ME60 X3 X8 X16 Huawei Mobile Router BRAS ME60-X3 ME60-X8 ME60-X16

ME60-X3

ME60 X3 X8 X16 Huawei Mobile Router BRAS ME60-X3 ME60-X8 ME60-X16
ME60 X3 X8 X16 Huawei Mobile Router BRAS ME60-X3 ME60-X8 ME60-X16

ME60-X8

ME60-X8A

ME60 X3 X8 X16 Huawei Mobile Router BRAS ME60-X3 ME60-X8 ME60-X16
ME60 X3 X8 X16 Huawei Mobile Router BRAS ME60-X3 ME60-X8 ME60-X16

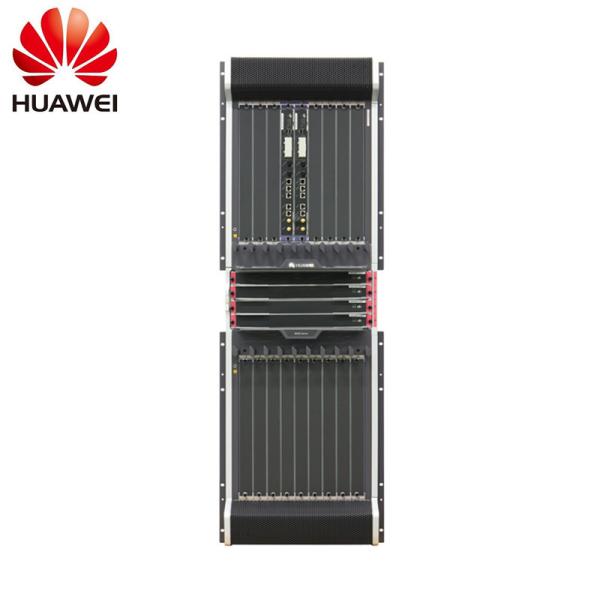

ME60-X16

ME60-X16A

Product features

The ME60 has the following table Specifications:

Attribute
ME60-X16A
ME60-X8A
ME60-X16
ME60-X8
ME60-X3
Switching Capacity
50.32 Tbit/s
25.16 Tbit/s
12.58 Tbit/s
7.08 Tbit/s
1.08 Tbit/s
Forwarding Performance
11,520 Mpps
5,760 Mpps
5,760 Mpps
2,880 Mpps
360 Mpps
Number of Slots
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
11 slots, including 8 LPUs, 2 SRUs, and 1 SFU
5 slots, including 3 LPUs and 2 SRUs
Dimensions
(H x W x D)
1,778 mm x 442 mm x 650 mm (40U)
934 mm x 442 mm x 650 mm (21U)
1,420 mm x 442 mm x 650 mm (32U)
620 mm x 442 mm x 650 mm (14U)
175 mm x 442 mm x 650 mm (DC 4U);
220 mm x 442 mm x 650 mm (AC 5U)
Maximum Power Consumption
7,220W (BSUF-240)
9,040W (BSUF-480)
4,110W (BSUF-240)
4,770W (BSUF-480)
4,610W (BSUF-100)
6,210W (BSUF-240)
2,340W (BSUF-100)
3,220W (BSUF-240)
920W (BSUF-100)
Full Configuration Weight
356 kg
190 kg
279 kg
136 kg
DC: 42 kg (100G)
AC: 52 kg (100G)
Interface Types
100 GE-WAN/LAN
10 GE-WAN/LAN
GE/FE
BRAS
User access protocols: PPPoE, IPoE, 802.1X, and ND access
User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS
User billing protocols: RADIUS, HWTACACS, and COPS
User authorization protocols: RADIUS, HWTACACS, and COPS
Policy protocols: COPS, COA
L2TP
Maximum number of sessions supported: 64K per slot and 128K per device
Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device
IPv4
Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
IPv6
Supports the following:
IPv4/IPv6 dual stacks
A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE)
IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6
IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing
Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite)
Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB
MPLS/MPLS VPN
Supports the following:
MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis
Inter-AS Option A, inter-AS Option B, and inter-AS Option C
Integration with Internet services
Martini MPLS L2VPN and Kompella MPLS L2VPN
VPLS and VLL
Heterogeneous interworking
Multicast VPN
Layer 2 Features
Supports the following:
Protocols such as IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s
VLAN aggregation (super VLAN)
Filtering list based on MAC addresses and ports
Reliability
Supports the following:
Protection mechanisms such as IP/LDP/VPN/TE/VLL FRR, IP/TE automatic rerouting, fast convergence of IGP/BGP/multicast routes, VRRP, load balancing among IP-Trunk links, BFD, MPLS/Ethernet OAM, and routing protocol/port/VLAN damping
PW redundancy, E-Trunk, E-APS, and E-STP
In-service patching for smooth software upgrade
Passive backplane
Redundancy backup for key components such as route processing modules, SFUs, and power modules to guard against a single point of failure
Switching between components that hot back up each other, Graceful Restart (GR), NSF, NSR, and ISSU
Hot swapping for all components
Intra- or inter-CGN service chassis 1+1 and 1:1 hot backup
Security
Supports the following:
ACL-based packet filtering
URPF
GTSM
DHCP snooping
ARP attack defense
DoS attack defense
MAC address limit
MAC-IP binding
SSH
SSHv2
Operating Environment
Long-term operating temperature: 0°C to 45°C
Short-term operating temperature: –5°C to 55°C
Long-term operating humidity: 5% to 85%
Short-term operating humidity: 0% to 100%
Operating altitude: Equal to or below 4,000m
