Specifications
Place of Origin :
China
Brand Name :
Huawei
Model Number :
NE40E
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Switching Capacity NE40E-X3 :
1.08 Tbit/s
Switching Capacity NE40E-X8 :
7.08 Tbit/s
Switching Capacity NE40E-X16 :
12.58 Tbit/s
Switching Capacity NE40E-X16A :
81.92 Tbit/s
Switching Capacity NE40E-X8A :
25.16 Tbit/s
Forwarding Performance NE40E-X3 :
360 Mpps
Forwarding Performance NE40E-X8 :
2,880 Mpps
Forwarding Performance NE40E-X8A :
9,600 Mpps
Forwarding Performance NE40E-X16 :
5,760 Mpps
Forwarding Performance NE40E-X16A :
48,000 Mpps
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

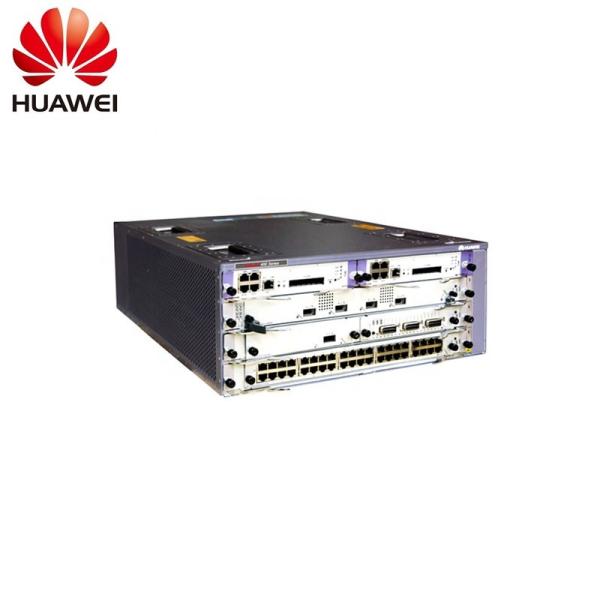

Huawei NE40E X3 X8 X16 Router NE40E-X3 NE40E-X8 NE40E-X16

Product Overview

The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.

Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.

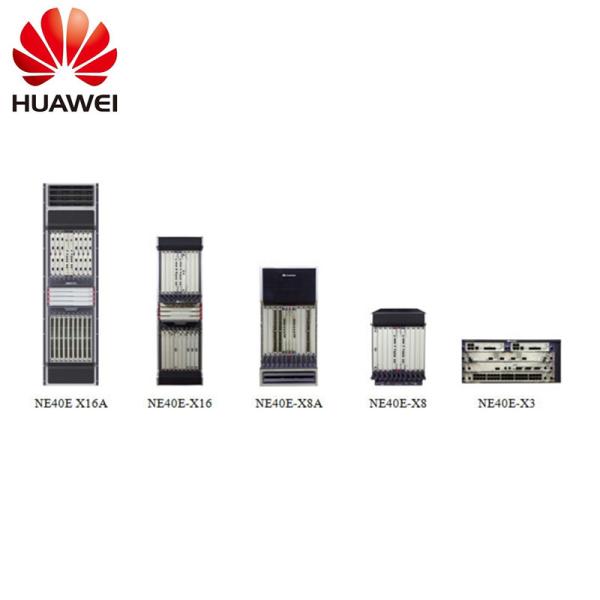

Product Appearance

The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.

Product Characteristics

·Extremely large capacity line card
·Energy saving design
·Future-oriented IPv6-compatible solutions
·All-round reliability solution

The following describes the reliability protection levels that the NE40E provides:
·Equipment-level reliability
·Network-level reliability
·Service-level reliability
·Enhanced metro Ethernet features
·Enhanced user management functions
·Efficient OAM features

Product features

The NE40E has the following table Specifications:

Item

NE40E-X16A

NE40E-X16

NE40E-X8A

NE40E-X8

NE40E-X3A

NE40E-X3

NE40E-M2H

Switching Capacity

81.92 Tbit/s

12.58 Tbit/s

25.16 Tbit/s

7.08 Tbit/s

4.19 Tbit/s

1.08 Tbit/s

960G

Forwarding Performance

48,000 Mpps

5,760 Mpps

9,600 Mpps

2,880 Mpps

900 Mpps*

360 Mpps

330 Mpps

Number of Slots

22 slots, including2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs

22 slots, including 2 MPUs (1:1 backup), 4 SFUs(3+1 backup), and 16 LPUs

12 slots, including 2 SRUs (1:1 backup), 2 SFUs(3+1 backup), and 8 LPUs

11 slots, including 2 SRUs (1:1 backup), 1 SFUs(2+1 backup), and 8 LPUs

5 slots (for 3 LPUs and 2 MPUs)

5 slots (for 3 LPUs and 2 MPUs)

2 slots

Dimensions

(W x D x H)

442 mm x 650 mm x 1,778 mm (40U)

442 mm x 650 mm x 1,420 mm (32U)

442 mm x 650 mm x 934 mm (21U)

442 mm x 650 mm x 620 mm (14U)

442 mm x 664 mm x 264 mm (6U)

442 mm x 650 mm x 175 mm (DC, 4U);

442 mm x 650 mm x 220 mm (AC, 5U)

442 mm x 220 mm x 89 mm (2U)

Power Consumption

(in full configuration)

9,040W (480G)

4,610W (120G)

7,970W (240G)

4,770W (480G)

2,340W (120G)

4,100W (240G)

600W (200G)

1,070W (AC)

920W (DC)

537W (AC)

499W (DC)

Weight (in full configuration)

356 kg (480G)

246 kg (120G)

279 kg (240G)

186 kg (480G)

119 kg (120G)

136 kg (240G)

75 kg (200G)

42 kg (DC)

52 kg (AC)

11 kg (DC)

12 kg (AC)
