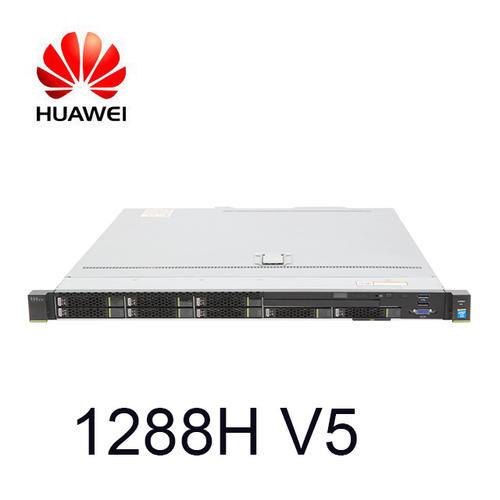

02311XDB H12H-05-S8AFF Huawei Storage Server 1288H V5 HDD Chassis
02311XDB H12H-05-S8AFF Huawei Storage Server 1288H V5 HDD Chassis
Specifications
Brand Name :
Huawei
Model Number :
FusionServer Pro 1288H V5, H12H-05-S8AFF
Place of Origin :
China
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type :
Rack
Processor Type :
Intel Xeon
FusionServer Pro 1288H V5 :
1U, 2-socket
Dimensions 3.5-inch drives :
43 mm x 447 mm x 748 mm
Dimensions 2.5-inch drives :
43 mm x 447 mm x 708 mm
Memory slots :
24 DDR4 DIMM
Power Supply :
2 hot-swappable
LOM Network Ports :
2 x 10GE + 2 x GE ports
RAID Support :
RAID 0, 1, 10, 5, 50, 6, or 60
Flash storage :
2 M.2 SSDs
Description
Product Overview

02311XDB H12H-05-S8AFF 1288H V5 (8*2.5inch HDD Chassis, With 2*GE and 2*10GE SFP+(Without Optical Transceiver)) H12H-05(For oversea)

Device Attributes

BOM
Model
Description
Memory
06200244
N26DDR400
DDR4 RDIMM Memory,8GB,2666MT/s,1Rank(1G*8bit),1.2V,ECC
06200240
N26DDR401
DDR4 RDIMM Memory,16GB,2666MT/s,2Rank(1G*8bit),1.2V,ECC
06200241
N26DDR402
DDR4 RDIMM Memory,32GB,2666MT/s,2Rank(2G*4bit),1.2V,ECC
06200242
N26DDR464
DDR4 LRDIMM Memory,64GB,2666MT/s,4Rank(2G*4bit),1.2V,ECC
06200257
N26DDR4G128
DDR4 LRDIMM Memory,128GB,2666MT/s,8Rank(2G*4bit),1.2V,ECC,TSV
Hard Disk(with 2.5" Front Panel)-SAS
02311HAK
N300S1210W2
HDD,300GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
02311EXX
N3002S15W2
HDD,300GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
02311HAP
N600S1210W2
HDD,600GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
02311AYF
N600S15W2
HDD,600GB,SAS 12Gb/s,15K rpm,128MB,2.5inch(2.5inch Drive Bay)
02311WYV
N900S1215W2
HDD,900GB,SAS 12Gb/s,15K rpm,256MB or above,2.5inch(2.5inch Drive Bay)
02311HAN
N1200S1210W2
HDD,1200GB,SAS 12Gb/s,10K rpm,128MB or above,2.5inch(2.5inch Drive Bay)
02311FMR
N1800S10W2
HDD,1800GB,SAS 12Gb/s,10K rpm,128MB,2.5inch(2.5inch Drive Bay)
02312DFD
N2400S1210W2
HDD,2400GB,SAS 12Gb/s,10K rpm,256MB,2.5inch(2.5inch Drive Bay)
02311JCY
N1000NS127W2
HDD,1000GB,NL SAS 12Gb/s,7.2K rpm,128MB,2.5inch(2.5inch Drive Bay)

Technical Specifications

FusionServer Pro 1288H V5 Rack Server
The Huawei FusionServer Pro 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, High-Performance Computing (HPC), and Big Data processing. It delivers superior performance and excellent scalability while improving space utilization in data centers, driving down the overall expenditure.

Model
FusionServer Pro 1288H V5
Form Factor
1U, 2-socket rack server
Processors
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W

1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W
Memory
24 DDR4 DIMM slots, 2933 MT/s; up to 12 DCPMMs, 2666 MT/s
Internal Storage
Supports hot-plug hard drives and the following configuration options:
10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less)
10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less)
10 x 2.5-inch SAS/SATA/SSDs
8 x 2.5-inch SAS/SATA hard drives
4 x 3.5-inch SAS/SATA hard drives

Flash storage:
2 M.2 SSDs
RAID Support
RAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports
LOM: 2 x 10GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports
PCIe Expansion
Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules
7 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
550W AC Platinum PSUs
900W AC Platinum/Titanium PSUs
1,500W AC Platinum PSUs
1,500W 380V HVDC PSUs
1,200W -48V to -60V DC PSUs
Management
Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.

iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.

(Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
Certifications
CE, UL, FCC, CCC, and RoHS
Installation suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
