BOM

Model

Description

Flexible NIC

02311TWW

BC1M03FGEB

SM211 Onboard NIC,2xGE Electrical Interface(I350),RJ45

02311TXF

BC2M01FGEC

SM212 Onboard NIC,4xGE Electrical Interface(I350),RJ45

02311TXE

BC1M09FGED

SM233 Onboard NIC,2x10GE Electrical Interface(X540),RJ45

02312DJG

BC1M01ETHA

SM380 Onboard NIC,25GE Optical Interface(MELLANOX CX-4 Lx),Dual-Port,SFP28(without Optical Transceiver)

02311TYL

BC1M05FLIB

SM252 Onboard FDR IB Card,1x56Gb,QSFP+

02311TYM

BC1M05FLIA

SM251 Onboard FDR IB Card,2x56Gb,QSFP+

Riser Card

02311TWR

BC1M31RISE

3*x8 (x16 slot) Riser1 Module

02311XAH

BC1M40RISE

1*x16 + 1*x8 (x16 slot) Riser Card2 Module

02311TWQ

BC1M30RISE

1*x16 + 1*x8 (x16 slot) GPU Riser Card Module

02311TWT

BC1M33RISE

1*x8 (x16 slot) + 1*x8 Riser3 Module

02311VLP

BC1M35RISE

1*x16 Riser3 Module

02312CVF

BC2M20IHDD

2*2.5inch; Rear Hard Disk Backplane Module

02311TWV

BC1M01RHBC

Rear 4*2.5 inch Hard Disk Backplane Module

02311XLA

BC1M02RHBC

Rear PSU 4*2.5 inch Hard Disk Backplane Module(for NVME&HDD)

02311TYN

BC1M20IHDD

2*3.5inch; Rear Hard Disk Backplane Module

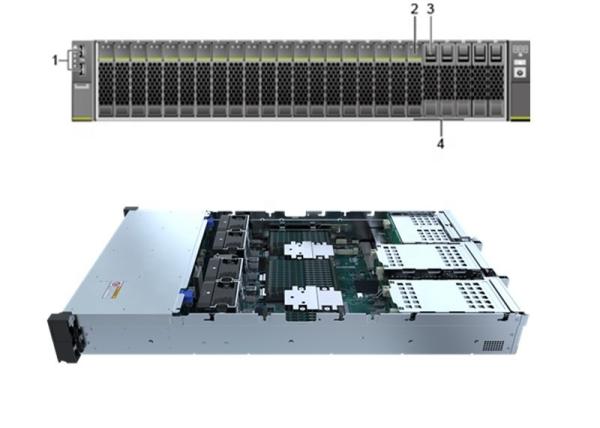

Model

FusionServer Pro 2288H V5

Form Factor

2U, 2-socket rack server

Processors

1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W

Memory

24 DDR4 DIMM slots, 2,933 MT/s; up to 12 DCPMMs, 2,666 MT/s

Internal Storage

Supports the following hard drive configuration options:
8 x 2.5-inch SAS/SATA HDDs or SSDs
12/16/20 x 3.5-inch SAS/SATA HDDs
4, 8, 12, 24, or 28 NVMe SSDs
31 x 2.5-inch SAS/SATA HDDs or SSDs
Flash storage:
2 M.2 SSDs

RAID Support

RAID 0, 1, 10, 1E, 5, 50, 6, or 60
Configured with a supercapacitor for cache power-off protection (optional)
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration

Network Ports

LOM: 2 x 10 GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports

PCIe Expansion

Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.

Fan Modules

4 hot-swappable fan modules with optional N+1 redundancy

Power Supply Units

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1):
550W AC Platinum PSUs
900W AC Platinum/Titanium PSUs
1,500W AC Platinum PSUs
1,500W 380V HVDC PSUs
1,200W -48V to -60V DC PSUs

Management

Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
(Optional) Configured with the Huawei eSight management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.

Operating Temperature

5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant

Certifications

CE, UL, FCC, CCC, and RoHS

Installation suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
