Industry 48V All Digital Data Center Power TP482000B-N20C5 Large Capacity
Industry 48V All Digital Data Center Power TP482000B-N20C5 Large Capacity
Specifications
Model Number :
TP482000B-N20C5
Place of Origin :
China
Brand Name :
Huawei
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Product name :
Huawei TP482000B-N20C5 Power Syetem
Type :
Network Central; Data Center Power System
Application :
Data center;Wireless network central office;
Weight :
≤150kg(without rectifier modules)
Cooling mode :
Natural cooling
Skype ID :
Hongtelecom_ethan
Dimensions :
600mm(W)*600mm(D)*2000mm(H)
Rectifier Input :
3-phase, 260VAC~530VAC, rated 380VAC
Rectifier Module :
R48100
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description

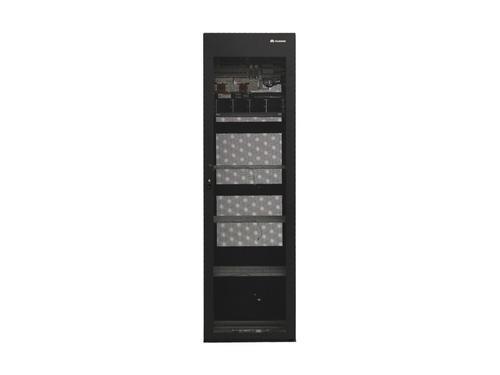

Huawei Industry 48V All-digital Large Capacity Data center Power TP482000B-N20C5

Huawei TP482000B-N20C5 is the first all-digital large capacity telecom power system in industry. AC distribution, rectifier, monitoring unit and DC distribution are integrated in single cabinet. The system consists of 1U high 100A rectifiers. The output of single cabinet can reach 2000A, and can be expanded to 10,000A by cabinets parallel combination. The system has tremendous features such as high reliability, high efficiency, high power density, high capacity, low noise and easy maintenance.

Scenario:

TP482000B, TP48300B and TP48600B are applicable to various indoor scenarios such as access network, transmission network, medium and small macro sites,etc.

Product Feature

• Integrated power system saves footprint by installing batteries in the cabinet.
• Outstanding housing capacity for Integrated system: 2 groups of batteries + 16U user space or 4 groups of batteries;
• Advanced module efficiency (up to 97%), non-derating below • 55ºC

• High reliability: MTBF of rectifier ≥ 500,000 hours, better than industry level and reducing maintenance cost.
• Prolonging lifespan of batteries: Battery intelligent management, including battery temperature, capacity and in position detection, etc.
• Support remote management: Visible, convenient to check real time data, operation status and set parameters remotely.
• Zero Investment in Environmental Monitor: In-band Transmission saves CAPAX.
