Model: EX4200-24P

P/N: 750-033066

In Good Condition

Full Working Order

Included

• 1 x Juniper EX4200 Series Ethernet Switch 24-PoE 24-Port EX4200-24P 750-033066

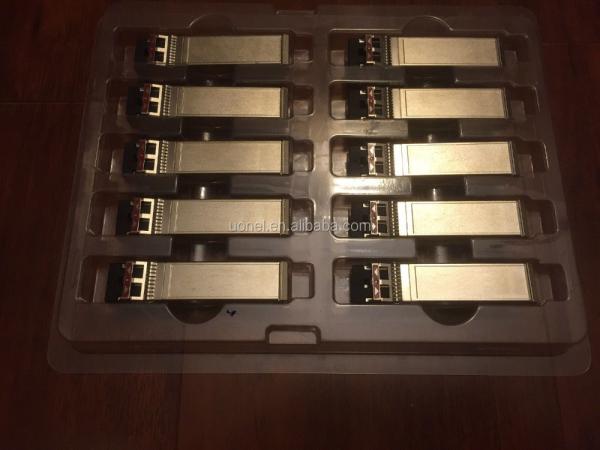

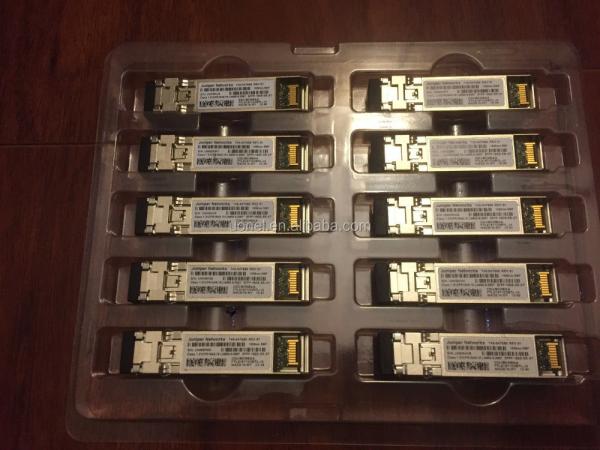

• 1 x Juniper Networks EX-UM-4SFP Uplink Module 4-Port 1G SFP
• 2 x 600W PSU SP704 SP704-Y01A 740-020958

Description

The EX 4200-24P is part of a series switches with Virtual Chassis technology. The 24T comprises 24 10/100/1000BASE-T ports of which 24 are PoE.

Featuring complete enterprise Layer 2 and Layer 3 switching capabilities, the EX 4200 series switches satisfy the high-density access and Gigabit Ethernet (GbE) aggregation requirements of today’s high-performance businesses. A single EX 4200 series switch can be deployed initially; as requirements grow, Virtual Chassis technology enables up to 10 switches to be interconnected and managed as a single device, delivering a scalable, pay-as-you grow solution for expanding network environments. Optional Gigabit Ethernet (GbE) and 10 Gigabit Ethernet (10GbE) uplink modules enable high-speed connectivity to aggregation- or core-layer switches.

High-availability features such as internal redundant, hot-swappable power supplies and a field-replaceable fan tray with redundant blowers ensure maximum uptime. The switches also support full and partial PoE options, delivering a full 15.4 watts of Class 3 PoE to support IPenabled telephones, video cameras and wireless LAN (WLAN) access points in converged network environments.

The EX 4200 series switches include an integrated Route Engine (RE) that runs the same modular JUNOS software as Juniper routers, ensuring a consistent implementation control plane features across an entire Juniper infrastructure. When two or more EX 4200 series switches are interconnected, the JUNOS software leverages the multiple Route Engines to deliver Graceful Route Engine Switchover (GRES) and Layer 2 non-stop forwarding in the event of an RE failure, delivering the reliability of a chassis-based switch.

A purpose-built packet-forwarding engine ASIC, the EX-PFE, consistently delivers wire-rate forwarding even with all control-plane features enabled. Based on existing Juniper technology, the EXPFE and RE bring the same level of carrier-class performance and reliability to the EX 4200 series switches that Juniper routers bring to the world’s largest networks.

Specification:

{master:0}

root> show version

fpc0:

--------------------------------------------------------------------------

Model: ex4200-24p

JUNOS Base OS boot [11.4R6.6]

JUNOS Base OS Software Suite [11.4R6.6]

JUNOS Kernel Software Suite [11.4R6.6]

JUNOS Crypto Software Suite [11.4R6.6]

JUNOS Online Documentation [11.4R6.6]

JUNOS Enterprise Software Suite [11.4R6.6]

JUNOS Packet Forwarding Engine Enterprise Software Suite [11.4R6.6]

JUNOS Routing Software Suite [11.4R6.6]

JUNOS Web Management [11.4R6.6]

JUNOS FIPS mode utilities [11.4R6.6]

{master:0}

root> show system license

License usage: none

Licenses installed: none
