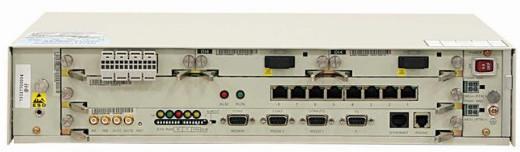

OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000
Specifications
Model Number :
SS42SB2D
Type :
Fiber fusion splicer
Place of Origin :
China
SS42SB2D :
2xSTM-1 single-fiber optical Interface Board
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX 155/622H SS42SB2D 2xSTM-1 single-fiber optical Interface Board-- METRO 1000

Functions and Features

The SB2D/SB2R/SB2L transmits and receives STM-1 optical signals on a single fiber, performs O/E conversion for the STM-1 optical signals, extracts and inserts overhead bytes, and generates alarm signals on the line.

  • The SB2D is a 2xSTM-1 single-fiber bidirectional optical interface board. In the case of the left optical interface, signals are transmitted on the 1550 nm wavelength and received on the 1310 nm wavelength. In the case of the right optical interface, signals are transmitted on the 1310 nm wavelength and received on the 1550 nm wavelength.
  • The SB2R is a 1xSTM-1 single-fiber bidirectional optical interface board. It has only one optical interface, which is on the right. Signals are transmitted on the 1310 nm wavelength and received on the 1550 nm wavelength.
  • The SB2L is a 1xSTM-1 single-fiber bidirectional optical interface board. It has only one optical interface, which is on the right. Signals are transmitted on the 1550 nm wavelength and received on the 1310 nm wavelength.
NOTE:

The SB2R and SB2L must be used together.

Table 1 provides the functions and features of the SB2D/SB2R/SB2L.

Table 1 Functions and features of the SB2D/SB2R/SB2L
Function and Feature SB2D SB2R SB2L
Basic functions Transmits and receives 2xSTM-1 optical signals. Transmits and receives 1xSTM-1 optical signals. Transmits and receives 1xSTM-1 optical signals.
Specifications of the optical interface Supports different types of standard optical interfaces, namely, the S-1.1 and L-1.1. The characteristics of the optical interfaces comply with ITU-T G.957.
Specifications of the optical module

Uses the SC optical module.

Provides the ALS function.

The optical interface supports the function of setting the on/off state of a laser.
Service processing Supports the processing of the VC-12, VC-3, and VC-4 services.
Overhead processing
  • Processes the section overheads of STM-1 signals.
  • Processes higher order path overheads.
  • Supports the setting of K-byte reporting, K-byte transmitting, and K-byte passing-through.
  • Provides the transparent DCC and orderwire byte channel.
  • Supports the setting and querying of the J0/J1/C2 byte.
Pointer processing Processes the AU pointer.
Alarms and performance events Provides rich alarms and performance events, thus facilitating the management and maintenance of the equipment.
Protection modes Supports the SNCP.
Maintenance features
  • Supports inloop and outloop at optical interfaces.
  • Supports inloop and outloop on VC-4 paths so that faults can be located quickly.
  • Supports the setting of the overhead byte to be sent/received.
  • Supports the setting of the enabled state of the SSM on the line optical interface.
  • Supports the pass-through test of the line K bytes.
  • Supports the setting of the bit error threshold-crossing values and degrade thresholds.
  • Provides the optical interface that supports the transmitting and receiving of signals on a single fiber to save optical fibers.
  • Provides the ALS function.

Technical Specifications

The technical specifications of the SB2D/SB2R/SB2L include the parameters specified for optical interfaces, dimensions, weight, and power consumption.

Parameters Specified for Optical Interfaces

Table 1 lists the parameters specified for the optical interfaces of the SB2D/SB2R/SB2L.

Table 1 Parameters specified for the optical interfaces of the SB2D/SB2R/SB2L
Parameter Value
Nominal bit rate 155.52 Mbit/s
Line code pattern NRZ
Connector SC
Type of optical interface S-1.1 L-1.1
Central wavelength (nm) 1310/1550 1310/1550
Maximum transmission distance (km) 15 60
Launched optical power (dBm) -15 to -8 -5 to 0
Receiver sensitivity (dBm) -28 -34

Mechanical Specifications

The mechanical specifications of the SB2D/SB2R/SB2L are as follows:

  • Dimensions (width x depth x height): 89.0 mm x 218.5 mm x 24.0 mm
  • Weight: 0.20 kg

Power Consumption

  • The maximum power consumption of the SB2D at room temperature (25°C) is 11 W.

  • The maximum power consumption of the SB2R/SB2L at room temperature (25°C) is 7 W.
