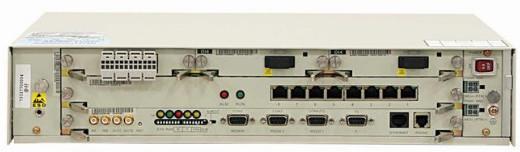

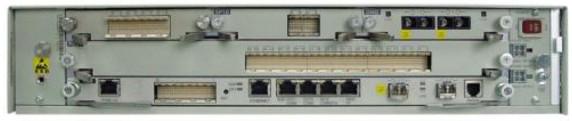

OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000
Specifications
Model Number :
SS42SHLQ
Type :
Fiber Identifier
Place of Origin :
China
SS42SHLQ :
4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX 155/622H SS42SHLQ 4 x Single Pair High-Bit-Rate Digital Subscriber Line Interface Board-- METRO 1000

Functions and Features

The SHLQ converts four G.SHDSL signals into four standard E1 signals, maps the E1 signals into VC-4s, and sends the VC-4 signals to the cross-connect unit. The SHLQ also processes path overheads and generates alarm signals on the tributary.

Table 1 provides the functions and features of the SHLQ.

Table 1 Functions and features of the SHLQ
Function and Feature SHLQ
Basic functions Provides four G.SHDSL interfaces, supports cabling from the front panel, and uses RJ-11 connectors to connect copper twisted pairs. The interfaces use two-wire cables.
Long-distance transmission Transmits E1 and Nx64 kbit/s data services in the G.SHDSL format, thus realizing long-distance access of E1 and Nx64 kbit/s signals.
Overhead processing Processes path overheads, configures all G.SHDSL service paths, monitors alarms and performance events on the service paths, and enables the communication between the service paths and the SCC unit.
Clock source Provides one synchronous clock source.
Protection modes Supports the SNCP switching and bit error protection switching.

Technical Specifications

The technical specifications of the SHLQ include the parameters specified for electrical interfaces, dimensions, weight, and power consumption.

Parameters Specified for Electrical Interfaces

Table 1 lists the parameters specified for the electrical interfaces of the SHLQ.

Table 1 Parameters specified for the electrical interfaces of the SHLQ
Parameter Value
Nominal bit rate Nx64 kbit/s and Framed E1
Connector type RJ-11 connector, two-wire twisted pair
Maximum transmission distance (km) 3

Mechanical Specifications

The mechanical specifications of the SHLQ are as follows:

  • Dimensions (width x depth x height): 89.0 mm x 218.5 mm x 24.0 mm
  • Weight: 0.24 kg

Power Consumption

The maximum power consumption of the SHLQ at room temperature (25°C) is 10.0 W.
