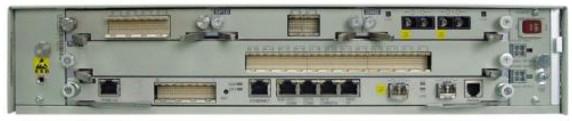

OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000
Specifications
Model Number :
SS42AIUD
Type :
Fiber Identifier
Place of Origin :
China
SS42AIUD :
2xSTM-1 ATM Interface Board
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX 155/622H SS42AIUD 2xSTM-1 ATM Interface Board-- METRO 1000

Functions and Features

The AIUD/AIUQ supports ATM switching and ATM protection.

The AIUD supports two external ports and two internal ports.

The AIUQ supports four external ports and four internal ports.

The AIUD/AIUQ accesses a maximum of 155 Mbit/s ATM services.

The ATM service is accessed by the optical fiber and is in the SDH frame structure. The payload is the ATM service.

The AIUD/AIUQ multiplexes and maps the ATM service, loads the ATM service into SDH VC-4s, and finally sends the SDH VC-4 signals to the SDH network.

Table 1 provides the functions and features of the AIUD/AIUQ.

Table 1 Functions and features of the AIUD/AIUQ
Function and Feature AIUD/AIUQ
Basic functions
  • Accesses and processes 2/4xSTM-1 ATM services.
  • Supports the configuration of multicast ATM services and point-to-point ATM services (including spatial multicast services and logical multicast services).
  • Converges ATM services.
Type of optical interface Supports the optical interfaces of typeIe-1 and type S-1.1.
Maximum uplink bandwidth 4xVC-4
Mapping mod VC-4
Service types CBR, rt-VBR, nrt-VBR, and UBR
ATM flow control Supports 15 flow control modes according to ITU-T Recommendations.
Alarm monitoring Monitors the alarms of ATM service. All the ATM-related alarms can be reported.
ATM protection modes Provides the protection function for ATM services. Provides the VP/VC connection-based 1+1/1:1 protection.
ATM performance counting Measures the performance of ATM services. All the ATM-related performances can be measured.
Maintenance features Provides the ATM OAM function. The AIUD/AIUQ can send loopback (LB) cells and continuity check (CC) cells to test the continuity. The AIUD/AIUQ can also capture the alarm indication signal (AIS) and remote defect indication (RDI) cells.

Technical Specifications

The technical specifications of the AIUD/AIUQ include the parameters specified for optical interfaces, dimensions, weight, and power consumption.

Parameters Specified for Optical Interfaces

Table 1 lists the parameters specified for the optical interfaces of the AIUD/AIUQ.

Table 1 Parameters specified for the optical interfaces of the AIUD/AIUQ
Parameter Value
Nominal bit rate 155.52 Mbit/s (The SDH frame structure is used and the payload is ATM services.)
Line code pattern NRZ
Type of optical interface S-1.1 Ie-1 S-1.1 Ie-1
Connector Single-mode LC Single-mode LC Multi-mode MT-RJ Multi-mode MT-RJ
Central wavelength (nm) 1310 1310 1300 1300
Maximum transmission distance (km) 15 2 15 2
Launched optical power (dBm) -15 to -8 -19.5 to -14 -15 to -8 -19 to -14
Receiver sensitivity (dBm) -31 -29 -31 -30

Mechanical Specifications

The mechanical specifications of the AIUD are as follows:

  • Dimensions (width x depth x height): 321.0 mm x 218.5 mm x 24.0 mm
  • Weight: 0.66 kg

The mechanical specifications of the AIUQ are as follows:

  • Dimensions (width x depth x height): 321.0 mm x 218.5 mm x 24.0 mm
  • Weight: 0.68 kg

Power Consumption

  • The maximum power consumption of the AIUD at room temperature (25°C) is 23 W.

  • The maximum power consumption of the AIUQ at room temperature (25°C) is 25 W.
