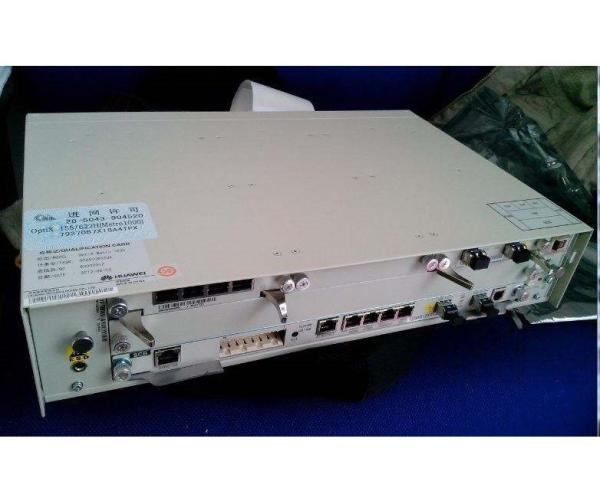

OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000
Specifications
Model Number :
SS42SLE
Type :
Fiber Identifier
Place of Origin :
China
SS42SLE :
1xSTM-1 Electrical Interface Board
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Brand Name :
Huawei
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us

OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000

Functions and Features

The SLE/SDE transmits and receives STM-1 electrical signals, extracts and inserts overhead bytes, and generates alarm signals on the line.

Table 1 provides the functions and features of the SLE/SDE.

Table 1 Functions and features of the SLE/SDE
Function and Feature SLE SDE
Basic functions Transmits and receives 1xSTM-1 electrical signals. Transmits and receives 2xSTM-1 electrical signals.
Service processing The SLE/SDE transmits and receives STM-1 electrical signals, extracts and inserts overhead bytes, and generates alarm signals on the line.
Overhead processing
  • Processes the section overheads of STM-1 signals. The overhead bytes include the B1 byte, B2 byte, K1 byte, K2 byte, M1 byte, F1 byte, and D1-D12 bytes.
  • Processes path overheads (transparent transmission and termination). The overhead bytes include the J1 byte, B3 byte, C2 byte, G1 byte, and H4 byte.
  • Supports the setting and querying of the J0/J1/C2 byte.
Alarms and performance events Provides rich alarms and performance events, thus facilitating the management and maintenance of the equipment.
Protection modes Supports the SNCP.
Maintenance features

Supports inloop and outloop at ports.

Technical Specifications

The technical specifications of the SLE/SDE include the parameters specified for electrical interfaces, dimensions, weight, and power consumption.

Parameters Specified for Electrical Interfaces

Table 1 lists the parameters specified for the electrical interfaces of the SLE/SDE.

Table 1 Parameters specified for the electrical interfaces of the SLE/SDE
Parameter Value
Nominal bit rate 155.520 Mbit/s
Line code pattern CMI
Connector 75-ohm SMB coaxial connector

Mechanical Specifications

The mechanical specifications of the SLE are as follows:

  • Dimensions (width x depth x height): 89.0 mm x 218.5 mm x 24.0 mm
  • Weight: 0.21 kg

The mechanical specifications of the SDE are as follows:

  • Dimensions (width x depth x height): 89.0 mm x 218.5 mm x 24.0 mm
  • Weight: 0.22 kg

Power Consumption

  • The maximum power consumption of the SLE at room temperature (25°C) is 9 W.

  • The maximum power consumption of the SDE at room temperature (25°C) is 10 W.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000DHL 3-5 business days
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 Fedex 3-5 business days
OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 By Sea 10-20 business days

OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000Deliver to port:

Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.

OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000Deliver to door:

Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.

Warranty

OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices


OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.


OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 Free Technical Support:

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.


OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.


OptiX 155/622H SS42SLE 1xSTM-1 Electrical Interface Board-- METRO 1000 Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed product: 1 Year

The Support Contacts:

If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
