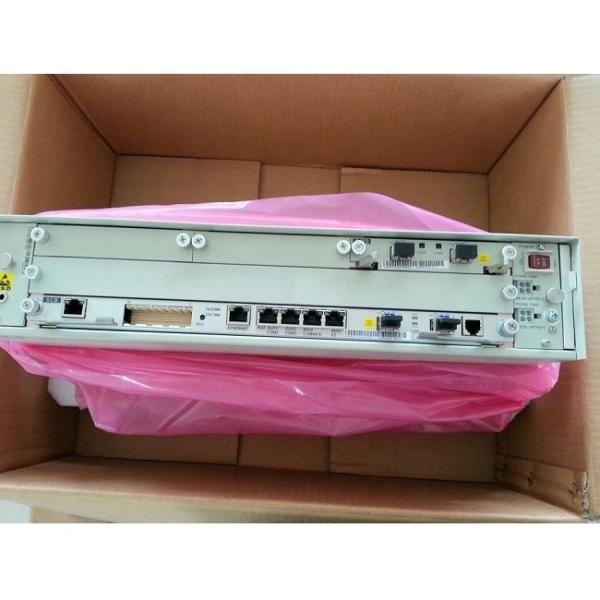

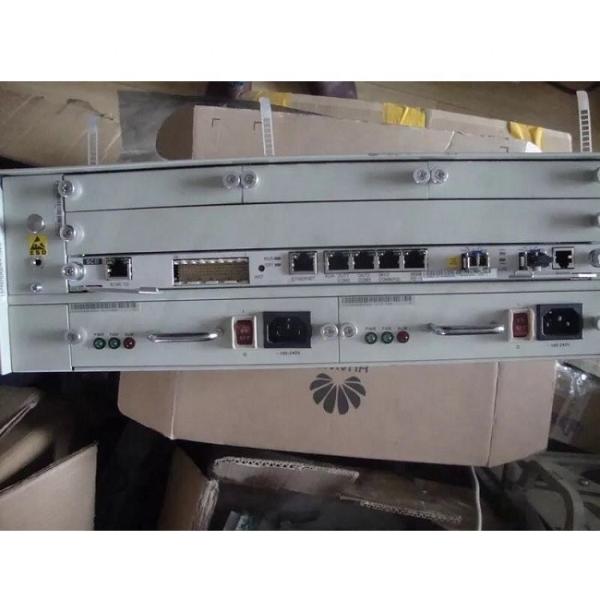

HUAWEI OI2D SS48OI2D SS48OI2D02-S1.1 optical interface board for HUAWEI OptiX Metro 1000 Metro1000

The OptiX Metro 1000, a type of STM-1/STM-4/STM-16 case-shaped equipment, was developed by Huawei to enable access for multiple types of services. It can be used at the access layer of Metropolitan Area Networks (MANs) and local transmission networks to access VIP private lines, wireless base stations, and Digital Subscriber Line Access Multiplexers (DSLAMs).

High Integration

• Chassis dimensions: 442 mm (W) x 220 mm (D) x 43.6 mm (H)

Flexible MADM Design

• Supports 21.25 Gbit/s higher order cross-connections, and 5 Gbit/s lower order cross-connections
• Supports networking topologies including point-to-point, chain, ring, hub, and mesh, etc

Various Service Interfaces

• SDH/PDH service
• Ethernet service
• ATM service
• Audio and data service
• DDN service
• G.SHDSL

Smooth Evolution Capacity

• Supports smooth evolution from STM-1 to STM-4 and to STM-16

Highly Reliable Design

• Equipment-level: 1+1 hot backup for the power supply
• Network-level: Linear multiplex section protection (LMSP), Ring MSP, Sub network connection protection (SNCP), Protection for inter-ring services, Fiber-shared virtual path protection

Flexible Process for DCC

• Supports transparent transmission of the DCC bytes and management information transmission through the external clock interface to realize hybrid networking and unified network management

IEEE 1588 V2 Clock Synchronization

• Provides high-precision time synchronization to meet power, finance, and other industry requirements

  Interface Type		Description	Connector Type
  Service interface	SDH service	STM-1 optical interface: supports the Ie-1, S-1.1, and L-1.1 optical modules.	SC/LC
  		STM-1 optical interface: supports the S-1.1 and L-1.1 optical modules that use a single fiber for transmitting and receiving.	SC/LC
  		STM-4 optical interface: supports the Ie-4, S-4.1, and L-4.1 optical modules.	SC/LC
  		STM-16 optical interface: supports the S-16.1 optical modules.	LC
  		STM-1 electrical interface	SMB
  	PDH service	E1/T1 electrical interface	2 mm HM connector
  		Framed E1 electrical interface	DB78 connector
  		E3/T3 electrical interface	LC
  	Ethernet service	10BASE-T, 100BASE-TX	RJ-45
  		100BASE-FX	LC
  		1000BASE-SX/LX	LC
  		1000BASE-FX	LC
  	ATM service	STM-1 optical interface: 155 Mbit/s	MTRJ/LC
  	Audio and data service	RS-232 or RS-422 data and audio interface	2 mm HM connector
  	DDN service	Physical interface complying with multiple protocols, including V.35, V.24, X.21, RS-449, and EIA-530	2 mm HM connector
  		Framed E1 electrical interface	DB78 connector
  	G.SHDSL service	Single pair high-bit-rate digital subscriber line interface	RJ-11
  Clock interface		The clock signals at the 120-ohm external clock interface can be 2048 kbit/s or 2048 kHz.	RJ-45
  Power interface		2x–48 V DC/–60 V DC power interfaces+1x24 V DC interface	4-core socket
  Environment monitoring interface		The EMU board provides the following interfaces: 12 housekeeping signal inputs and 6 housekeeping signal outputs An RS-232/RS-422 serial communication interface	2 mm HM connector
  		The SCB board provides the following interfaces: Four housekeeping signal inputs and 2 housekeeping signal outputs Four transparent data interfaces	RJ-45
  Management interface		A modem interface	RJ-45
  		An NM interface	RJ-45
  Orderwire interface		An orderwire phone interface	RJ-11
