The OptiX RTN 950 adopts a split structure. The system consists of the IDU 950 and the ODU. Each ODU is connected to the IDU 950 through an IF cable.

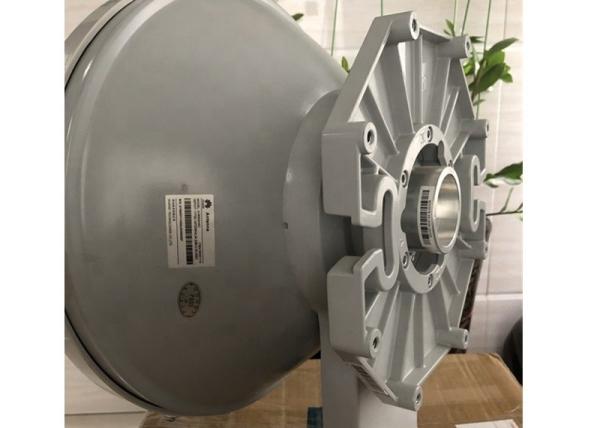

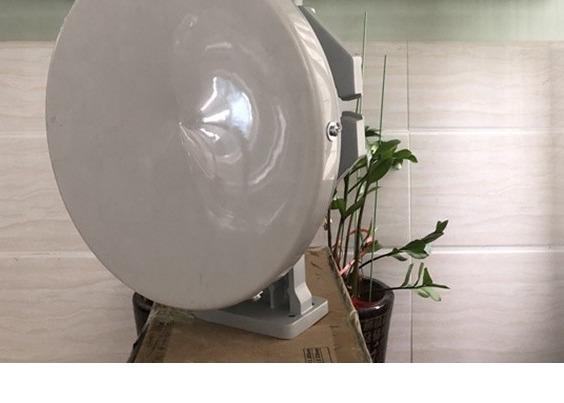

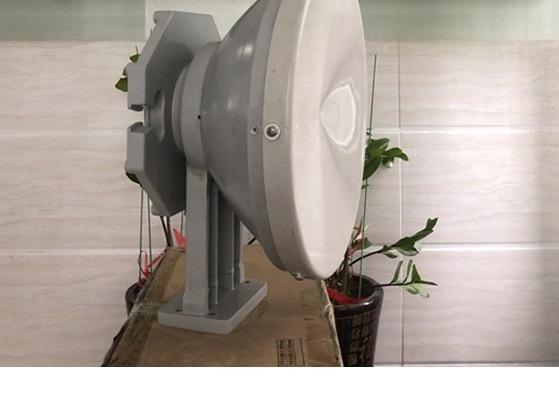

There are two methods for mounting the ODU and the antenna: direct mounting and separate mounting.

The direct mounting method is generally adopted when a small- or medium-diameter and single-polarized antenna is used. In this situation, if one ODU is configured for one antenna, the ODU is directly mounted at the back of the antenna. If two ODUs are configured for one antenna, an RF signal combiner/splitter (hence referred to as a hybrid coupler) must be mounted to connect the ODUs to the antenna.

The direct mounting method can also be adopted when a small- or medium-diameter and dual-polarized antenna is used. Two ODUs are mounted onto an antenna using an orthomode transducer (OMT). The method for installing an OMT is similar to that for installing a hybrid coupler.

The separate mounting method is adopted when a large- or medium-diameter and single- or dual-polarized antenna is used. In this situation, a hybrid coupler can be mounted (two ODUs share one feed boom).

Huawei's RTN 900 series is the industry's first TDM/Hybrid/Packet/Routing integrated IP microwave product. It can meet voice transmission requirements in the 2G era, voice and data transmission requirements in the 3G era, as well as broadband data transmission requirements in the LTE era, effectively protecting operator investments in infrastructure.

HUAWEI RTN905

HUAWEI RTN910

HUAWEI RTN950A

HUAWEI RTN980
