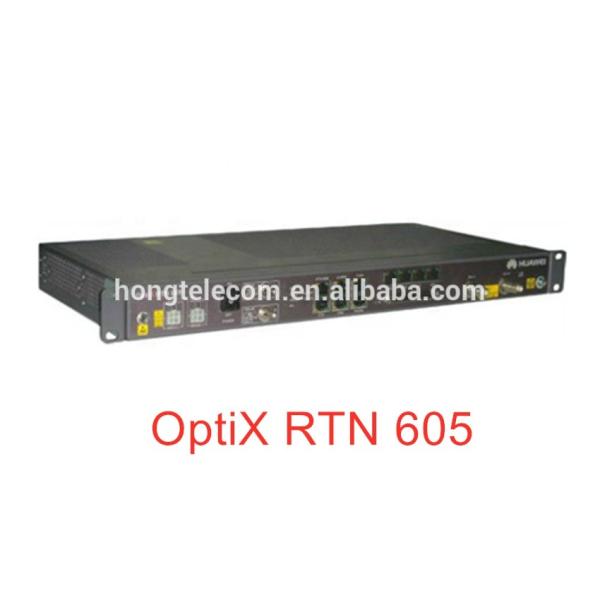

Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605
Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605
Specifications
Model Number :
RTN 605
Place of Origin :
China
Brand Name :
Huawei
OptiX RTN 605 Chassis :
1U
Pluggable :
Not supported
Microwave directions :
1
RF configuration mode 1 :
1+0 non-protection (IDU 605 1D/1E)
RF configuration mode 2 :
1+1 protection (IDU 605 2D/2E)
Supply Ability :
200 Piece/Pieces per Week
Price :
Negotiable
Certification :
CE FCC RoHS
MOQ :
Negotiable
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us
Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605

Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605

The OptiX RTN 605 is a set of Mini radio equipment. It supports one microwave direction, and provides radio tail access solution

The OptiX RTN 605 is of a split structure, consisting of the IDU 605 and the ODU. Each ODU is connected to the IDU 605 through an IF cable.

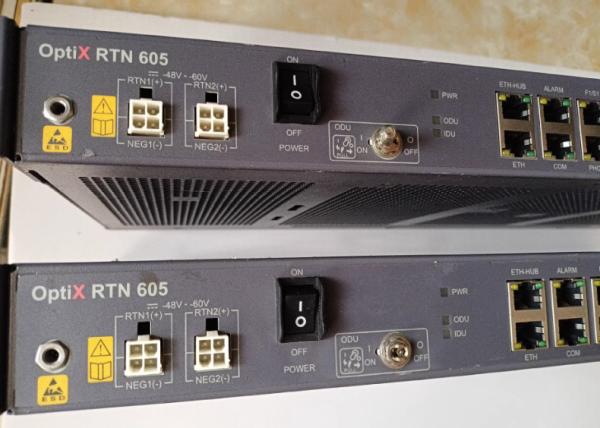

IDU 605
The IDU 605 is the indoor unit of the OptiX RTN 605. It accesses services, performs multiplexing/demultiplexing and IF processing of the services, and provides system control and communication function.


Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605
IDU 605 Item
IDU 605 1D/2D
IDU 605 1E/2E
Chassis height
1U
1U
Pluggable
Not supported
Not supported
Service interfaces
E1
E1, FE, GE
Ethernet processing capability
Not supported
Supports the VLAN and QinQ.
Supports Layer 2 switching, supports EPLAN and EVPLAN.
Supports EVPL.
Supports QoS (including CAR and CoS) functions, traffic classification based on port, four priority queues, and SP or WRR queue scheduling
Supports Ethernet OAM based on IEEE 802.1 ag and IEEE 802.3 ah
Supports the LAG.
Supports the Synchronous Ethernet.
Radio type
Mini PDH radio
Mini IP radio
Number of microwave directions
1
RF configuration mode
1+0 non-protection (IDU 605 1D/1E)
1+1 protection (IDU 605 2D/2E)
Outdoor Unit ODU

The ODU is the outdoor unit of the OptiX RTN 605. It performs frequency conversion and amplification of signals.

The OptiX RTN 605 provide a complete ODU solution. OptiX RTN 605 supports the RTN 600 ODU. Generally, the OptiX RTN 605 is configured with the low capacity for PDH ODU. If required in certain special scenarios, the OptiX RTN 605 can also be configured with the standard power ODU.

RTN 600 ODUs supported by the OptiX RTN 605

RTN 605 Item
Low Capacity for PDH ODU
Standard Power ODU
ODU type
LP and LPA
SP and SPA
Frequency band
7/8/11/13/15/18/23 GHz (LP ODU)
7/8/11/13/15/18/23/26/32/38 GHz (LPA ODU)
7/8/11/13/15/18/23/26/38 GHz (SP ODU)
6/7/8/11/13/15/18/23 GHz (SPA ODU)
Frequency band
QPSK/16QAM
QPSK/16QAM/32QAM/64QAM/128QAM/256QAM (SP ODU)
QPSK/16QAM/32QAM/64QAM/128QAM (SPA ODU)
Channel spacing
3.5/7/14/28 MHz
3.5/7/14/28 MHz

RTN XMC ODUs supported by the OptiX RTN 605

RTN 605 Item
Low Capacity for PDH ODU
ODU type
XMC-1
Frequency band
7/8/15/23 GHz
Microwave modulation mode
QPSK/16QAM
Channel spacing
3.5/7/14/28 MHz
