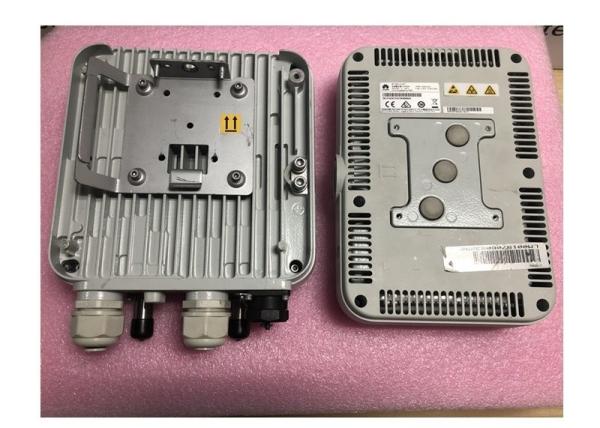

Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Specifications
Model Number :
RTN380A
Place of Origin :
China
Brand Name :
Huawei
Model :
SLESSFPK01
RTN380A Dimensions (H x W x D) :
265 mm x 265 mm x 65 mm
Microwave type 1 :
IP microwave over Native Ethernet
Microwave type 2 :
Microwave carrying CPRI services
Frequency bands :
71-76 GHz and 81-86 GHz
Channel spacing :
62.5 MHz, 125 MHz, 250 MHz, 500 MHz, and 750 MHz
RF configuration mode 1 :
1+0 mode
RF configuration mode 2 :
2+0 mode
RF configuration mode 3 :
1+1 HSB mode
RF configuration mode 4 :
Multi-directional mode
Supply Ability :
200 Piece/Pieces per Week
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE FCC RoHS
Packaging Details :
Export carton package
Delivery Time :
7-15 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Description
Contact Us
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01

02230WVY SLESSFPK01 single-mode eSFP kit (for GE or 1.25G CPRI),10km


SLEMSFPK01 multi-mode eSFP kit (for GE or 1.25G CPRI),0.55km
SLEMSFPK02 multi-mode eSFP kit for 2.5GE or 3G CPRI,0.3km
SLESSFPK04 Single-Mode eSFP kit for 2.5GE or 6G CPRI,2km
SLESSFPK05 Single-Mode eSFP kit for 2.5GE or 6G CPRI,10km
SLESSFPK06 Single-Mode eSFP kit for 10GE or 10G CPRI,1.4km
SLESSFPK07 Single-Mode eSFP kit for 10GE or 10G CPRI,10km
SLEMSFPK04 Multi-Mode eSFP kit for 10GE or 10G CPRI,0.1km


The RTN 380A can provide large-capacity backhaul microwave links or aggregation links on a mobile communications network or a private network.


As E-band full outdoor radio equipment, the RTN 380A has the following characteristics:

* The RTN 380A operates at 71-76 GHz or 81-86 GHz frequency bands. It features large capacity, low inter-site interference, and rich frequency spectrum resources, as compared with radio equipment that operates at 6-42 GHz frequency bands. Therefore, RTN 380As can form a backhaul network for base stations densely deployed in a city and provide large-capacity backhaul links for aggregation sites. In addition, the RTN 380A can provide high-bandwidth microwave links for transmitting Ethernet services on a metro optical Ethernet in areas where optical fibers are difficult to lay out.

* As compact full outdoor radio equipment, the RTN 380A integrates all functions in a chassis and does not need an extra installation site. Therefore, it allows carriers to construct and operate networks at lower costs than traditional split radio equipment.

On a mobile communications network, RTN 380As are mainly used to:

* Support protection such as PLA and 1+1 HSB. Provide large-capacity backhaul microwave links for 3G/LTE base stations especially those that are densely deployed in urban areas.

* Provide large-capacity aggregation links for 3G/LTE base stations and implement multi-direction aggregation when working with OptiX RTN 900s.

* Work with the CSG to provide a microwave channel solution for transparent transmission on the IP RAN.

* Work with OptiX RTN 900 to implement the Super Dual Band solution through EPLA. This solution provides high-bandwidth, long-distance, and high-availability backhaul links. Super Dual Band Relay extends the E-band link transmission distance to three times the transmission distance of a single-hop E-band link.


Specification

RTN 380A & RTN 380E specifications meet the high bandwidth requirements in E-Band microwave transmission. RTN 380A also has unique advantages in maintenance capabilities.

Item
RTN 380A Specifications
RTN 380E Specifications
Microwave types
IP microwave over native Ethernet or PWE3 Ethernet
IP microwave over native Ethernet and over PWE3 Ethernet
Frequency bands
71-76 GHz and 81-86 GHz
71-76 GHz and 81-86 GHz
Channel spacing
62.5 MHz, 125 MHz, 250 MHz, 500 MHz, 750 MHz and 1000 MHz
62.5 MHz, 125 MHz, 250 MHz, 500 MHz
Modulation schemes
BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM and 512QAM
QPSK Strong, QPSK, 16QAM Strong, 16QAM, 32QAM, and 64QAM
Capacity
Maximum air capacity: 6 Gbit/s
Maximum air-interface service throughput: 7.6 Gbit/s
Maximum switching capacity: 30 Gbit/s
Maximum air capacity: 1.0 Gbit/s
Maximum air-interface service throughput: 3.1 Gbit/s
Maximum switching capacity: 8 Gbit/s
RF configuration modes
1+0 mode
2+0 mode
1+1 HSB mode
CCDP mode
Multi-directional mode
1+0 mode
2+0 mode
1+1 HSB mode
CCDP mode
Multi-directional mode
Channel configuration modes
Adjacent channel alternate polarization (ACAP)
Adjacent channel co-polarized (ACCP)
Co-channel dual polarization (CCDP)
Adjacent channel alternate polarization (ACAP)
Adjacent channel co-polarized (ACCP)
Co-channel dual polarization (CCDP)
AMAC
Supported
Supported
ATPC
Supported
Supported
PLA
Supported
Supported
Super Dual Band
Supported
Service ports
Two 10GE SFP optical ports, one GE electrical port, and one power over Ethernet (P&E) port for transmitting Ethernet services (two 10GE SFP ports can also use GE electrical modules and FE optical modules)
2 x FE/GE SFP ports and 2 x GE fixed electrical ports are supported, one of the electrical ports supporting Power over Ethernet.
Service types
Native Ethernet services: E-Line service and E-LAN service

PW-carried Ethernet services: E-Line service and E-LAN (VPLS) service (VPLS standing for virtual private LAN service)
Native Ethernet services: E-Line service and E-LAN service

PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service)
QoS
Supported
Supported
HQoS
Supported
MPLS Tunnel
Supported
Supported
PWE3
Supported
Supported
Clock features
Supported clock sources: Microwave link clock and Synchronous Ethernet clock
IEEE 1588v2 time synchronization
ITU-T G.8275.1 time synchronization
Supported clock sources: Microwave link clock and Synchronous Ethernet clock
Power supply modes
Power over Ethernet, which supports power supply through the AC PI, DC PI or other specified power supply equipment
Power over Ethernet, which supports power supply through the AC PI, DC PI or other specified power supply equipment
Dimensions (H x W x D)
285 mm x 265 mm x 73 mm
265 mm x 265 mm x 65 mm
Weight
4.5 kg
3.8 kg
Antennas
Dish antennas: available in diameters of 0.2 m, 0.3 m, and 0.6 m

Flat antennas: available in models providing equivalent gain of dish antennas with diameters of 0.3 m

Wide-beam antenna: available in diameters of 0.3 m x 0.077 m
Dish antennas and flat antennas

Dish antennas: available in diameters of 0.2 m, 0.3 m, and 0.6 m

Flat antennas: available in models providing equivalent gain of dish antennas with diameters of 0.3 m
Related Products
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01

HUAWEI RTN310

HUAWEI RTN360

HUAWEI RTN380
RTN310
RTN360
RTN380
Support frequency
13/15/18/23/38GHz
59-64GHz
71-86GHz
Channel spacing
7/14/28/56MHz
200MHz
62.5/125/250/500/750MHz
Modulation mode
QPSK Strong~2048QAM Light
160QAM
QPSK Strong~64 QAM
Throughput
2Gbps Max
400Mbps
4Gbps Max
Business interface
GE
GE
GE, CPRI interface
USB interface
Support
Support
Support
Working environment
Working temperature : -35℃~+55℃
Relative humidity: 5%~100%
Power supply range
Support Ethernet power supply;
Support DC power : -38.4V ~ -57.6V
Weight
6kg
2.5kg
3.8kg
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01

HUAWEI RTN905

HUAWEI RTN910

Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01
Microwave RTN 380A E-band eSFP kit 02230WVY SLESSFPK01

HUAWEI RTN950A

HUAWEI RTN980
